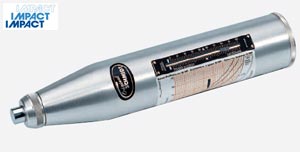

Concrete Test Hammer Type N - Schmidt
Test Procedure
Smooth test area with a grinding stone.
Perform test series of at least ten test impacts.

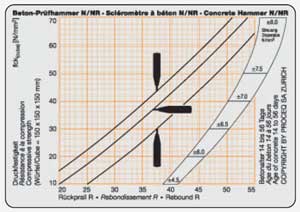

The compressive strength of the concrete is read from a conversion chart.
Perform test series of at least ten test impacts.
The compressive strength of the concrete is read from a conversion chart.
| Measuring range |
10 to 70 N/mm2compressive strength |
| Impact energy | 2,207 Nm. |
| Rebound values | Read from a dial. |
| Supplied | Carrying case including a grinding stone and operating instructions. |
| Case Dimensions | 325 x 125 x 140mm |
| Weight | 1.6kg |
