Crack Detection Microscope
Crack Detection Microscope

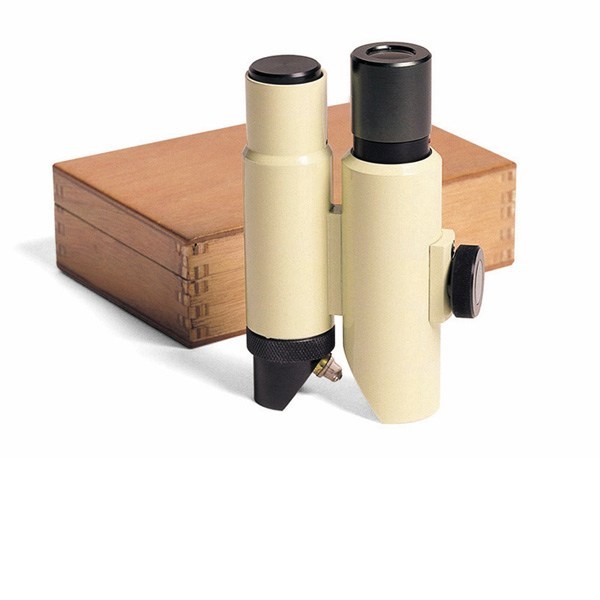

  • The Crack Detection Microscope is a precision apparatus, used for measuring cracks in concrete.

  • Portable microscope for measuring cracks in concrete and other materials.
  • Integral illumination
  • Rotating eyepiece
  • Focus adjustment
  • Range 0 to 4mm
  • Divisions - 0.2mm
  • Sub-divisions -0.02mm
  • It has its own adjustable light source for darkened conditions.
  • The image is focused by turning a knurled knob on the side and the eyepiece scale can be rotated through 360 degrees to align with the crack under examination.
  • The Crack Detection Microscope comes complete with a wooden box
Magnification 40 x
Measuring Range 4 mm
Subdivision 0.02 mm
Dimensions 150x80x45 mm
Weight approx550 g
