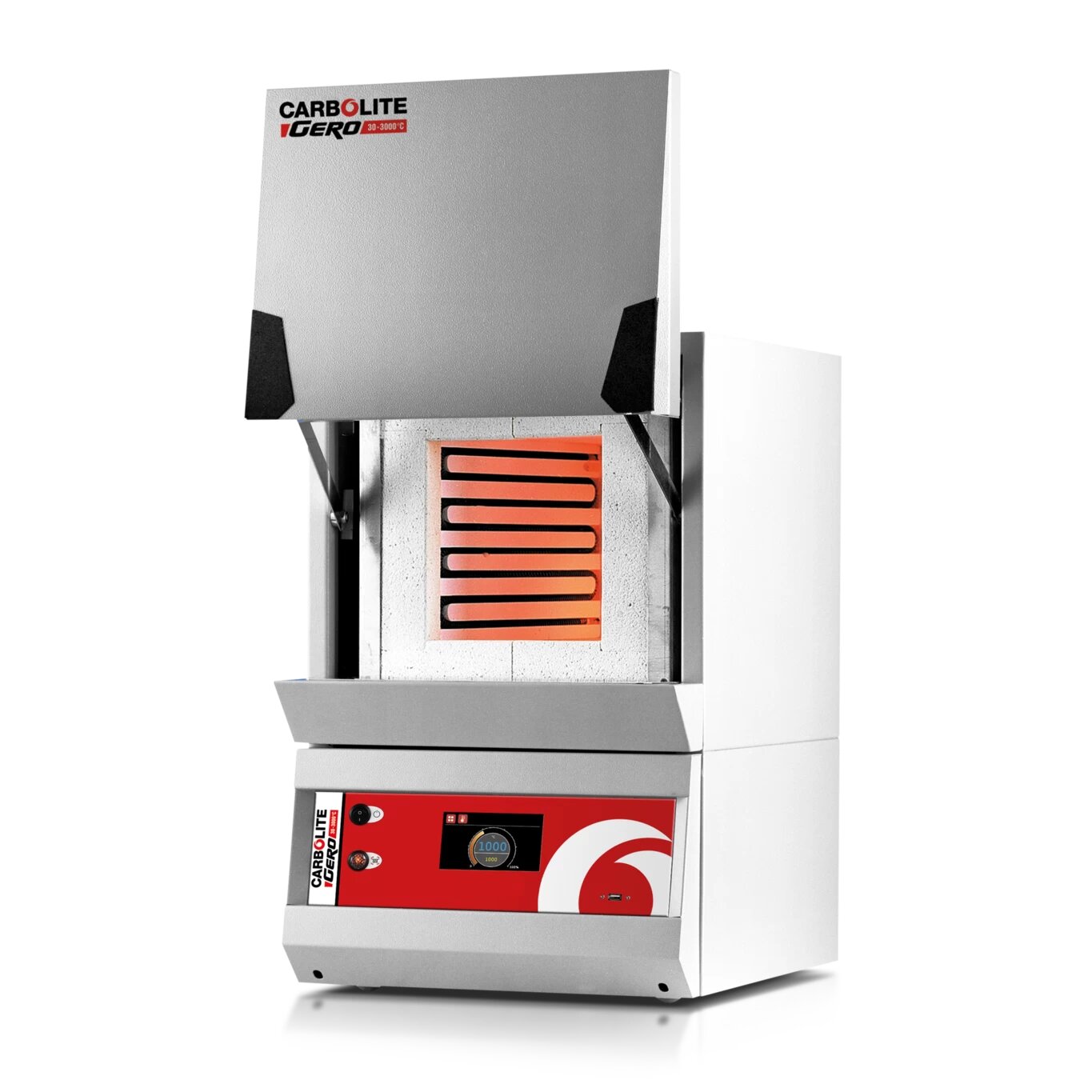

CWF11/5
The CWF range of general-purpose laboratory chamber furnaces is a bench mounted. Models are available in five sizes with maximum operating temperature up to 1300 °C.
- 1100°C, 1200°C or 1300°C maximum operating temperature
- 5, 13, 23, 36 or 65-litre chamber volumes
- Carbolite Gero 301 controller, with a single ramp to set-point & process timer
- Vertical lift door keeps heated surface away from the user
- Soft closing door on 5, 13, 21 & 23 litre models
- Delayed start/process timer function as standard
- Hard wearing alumina element carrier, furnace entrance and hearth
- Energy efficient low thermal mass insulation
- Free radiating wire wound elements for optimum uniformity
- Easy access to elements & controls simplifies maintenance & servicing
- CWF-B: Enhanced airflow from tall chimney & door vents for full combustion
- CWF-BAL: With an integrated balance that runs independently of the furnace control system
- CWF-BAL: Software supplied with the balance may be used to monitor the balance reading via a computer
- CWF-BAL: Maximum capacity of balance is 3 kg with a resolution of 0.01 g (other capacities available)
| Max temp (°C) | 1100 |
| Max continuous operating temp (°C) | 1000 |
| Volume (litres) | 5 |
| Heat-up time (mins) | 47 |
| Dimensions: Internal H x W x D (mm) |
135 x 140 x 250 |
| Dimensions: External H x W x D (mm) |
585 x 375 x 485 |
| Dimensions: External with door open H x W x D (mm) |
800 x 375 x 485 |
| Temperature uniformity of ± 5°C within H x W x D (mm) | 85 x 90 x 110 |
| Max power (W) | 2400 |
| Holding power (W) | 790 |
| Thermocouple type | R |
| Weight (kg) | 30 |
