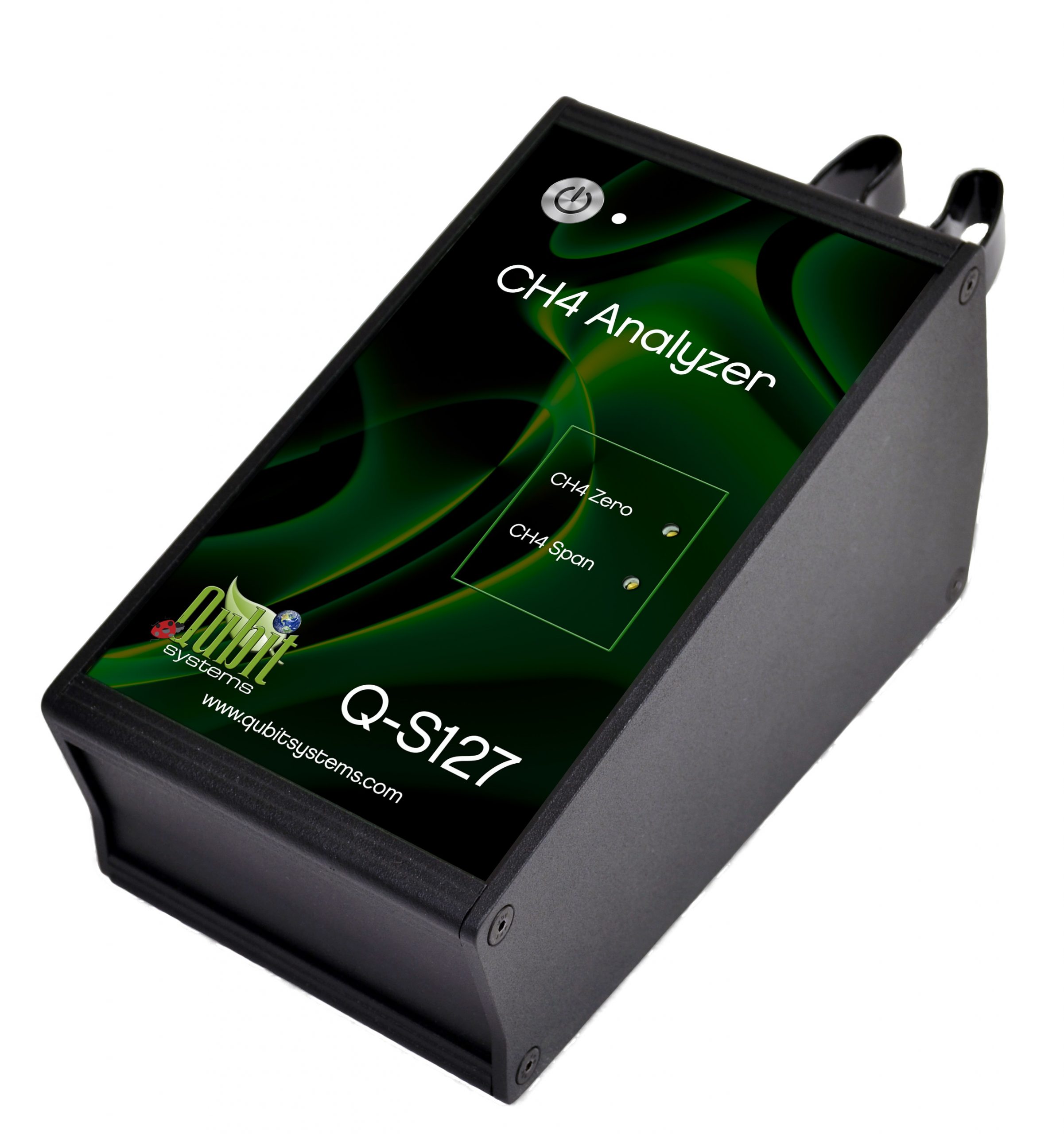

Q-S127 CH4 Analyzer 100ppm
Q-S127 CH4 Analyzer 100ppm
Soil , Soil Gas Sampling



Qubit Systems provides a low level Methane Analyzer 0-100ppm that uses a sensor with a metal oxide semiconductor layer on an alumina substrate with integrated heater.  The high resolution of the sensor (1ppm) allows detection of low levels of CH4 which is ideal in environmental applications.  The Q-S127 CH4 Analyzer has an analog output of  0-5V and should be used with data interface and software.  we recommend our C610 LabQuest Mini interface and Logger Pro Software

  • Low range flow-through CH4 analyzer
  • Ideal for surveys in environmental studies
  • 0-5V Analog Output
  • Portable
  • Economical

Appplications

  • Environmental Studies
  • Soil Research
  • Forestry
  • Human Breath Analysis
  • Insect Studies
  • Gas Leak Detection
Detection Principle metal oxide semi-conductor with heated alumina ceramic tube, flow through
Range 0 to 100 ppm CH4
Output 0 to 5 V analog to digital interface
Output sensitive to  O2 concentration,  background gas, solvents, H2 gas, water vapour, temperature and gas flow
Resolution ±1 ppm
Response time (90%) 2min
Non linear Calibration requires gas mixing or gas tanks
Operating Temp 0-60C
warranty 1 years
Dimensions (cm)  (H x W x D: 5.5 to 9.5 x 9.5 x 17)
Weight  1kg
Power Supply 12V DC
