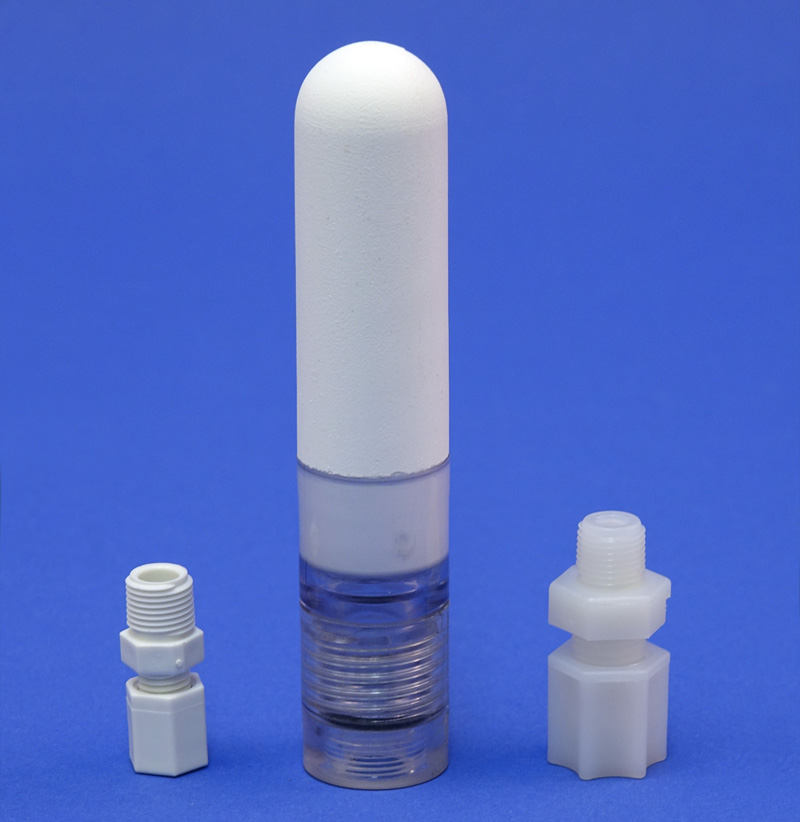

Remote Soil Water Sampler
Remote Soil Water Sampler
  • High flow ceramic, 1 bar (100 kPa) bubble pressure.
  • Minimal dead volume.
  • Remote access.
  • Continuous soil solution collection.
  • Installation depth 6 inches to 10 feet.
  • Includes two nylon fittings: one for 1/4" O.D. tubing and one for 1/8" O.D. tubing.
  • The 1900K3 1000 ml Extraction Kit is recommended,
  • An extra vacuum reservoir or a continuous vacuum source is required.
  • ASTM: D4696-92(2000).
  • Pore Water Sampling
  • Environmental Monitoring
  • Mining
  • Soil Moisture Remote Soil Water Sampler designed for continuous soil solution collection from remote sites where minimum disturbance to the soil surface is desired.
  • Can be installed at depths ranging from 6 inches to 10 feet, with the collection vessel situated in a site adjacent to the study plot.
  • The porous ceramic has high-flow characteristics, high alumina content for low adsorption, and moderate bubbling pressure (1 bar or 100 kPa).
  • The sampler has two nylon fittings: one for 1/4" O.D. tubing and one for 1/8" O.D. tubing.
  • The 1000 ml Extraction Kit is recommended, and a continuous vacuum source is required for the operation of the Sampler.

Installation/Sample Depths: 6" to 10 ft.

Weight: 0.13 lb.
