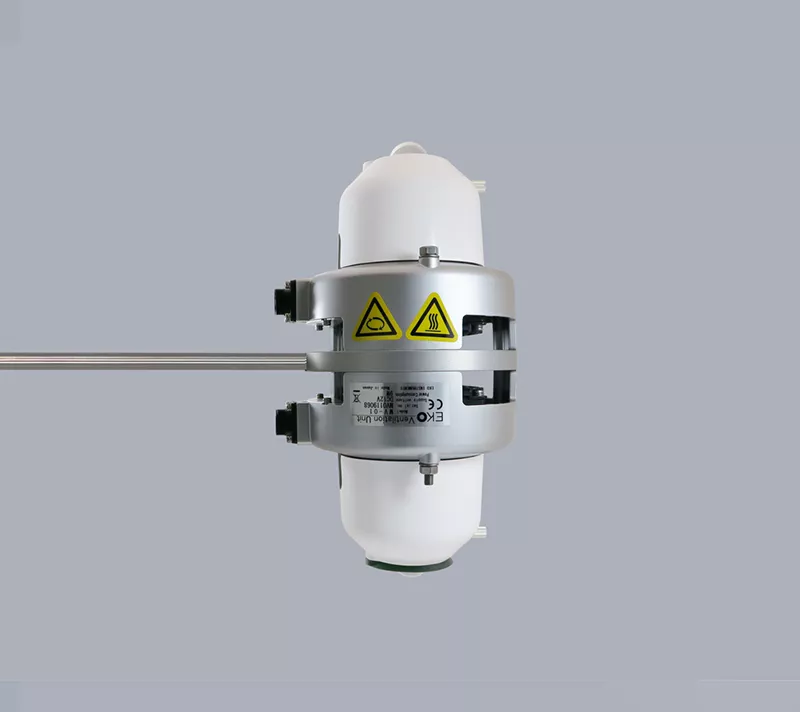

MS-Albedo MV Kit
MS & S-Series Compatible
The MS-Albedo MV Kit is designed for x2 pyranometers mounted on MV-01 ventilator and heater units, ensuring constant albedo or reflected irradiance measurements for Bi-facial PV applications, in all conditions.
Compatible with any MS & S-Series Series pyranometer, plus MV-01 ventilation units, the kit is easy to assemble on-site, with a robust aluminium and stainless steel construction.
The kit contains a mounting plate, 700 mm rod, albedo glare screen and mounting accessories. The packaged albedo glare screen is recommended for GHI albedo applications to limit the field of view and avoid dome reflections at low solar elevation angles.
- Compatible with all MS & S-Series sensors
- x2 sensor capacity, with MV-01 ventilation units, for global and reflected solar radiation
- Mounting rod, rod mounting clamps and albedo glare screen
- Robust aluminium & stainless-steel construction
| Albedo Mounting Kit | 2 positions |
| Pyranometer (GHI) | MS & S-Series |
| Dimensions | Plate ø 120 mm / ø 15mm Rod L = 700mm |
| Compatible with MV-01 | Yes |
