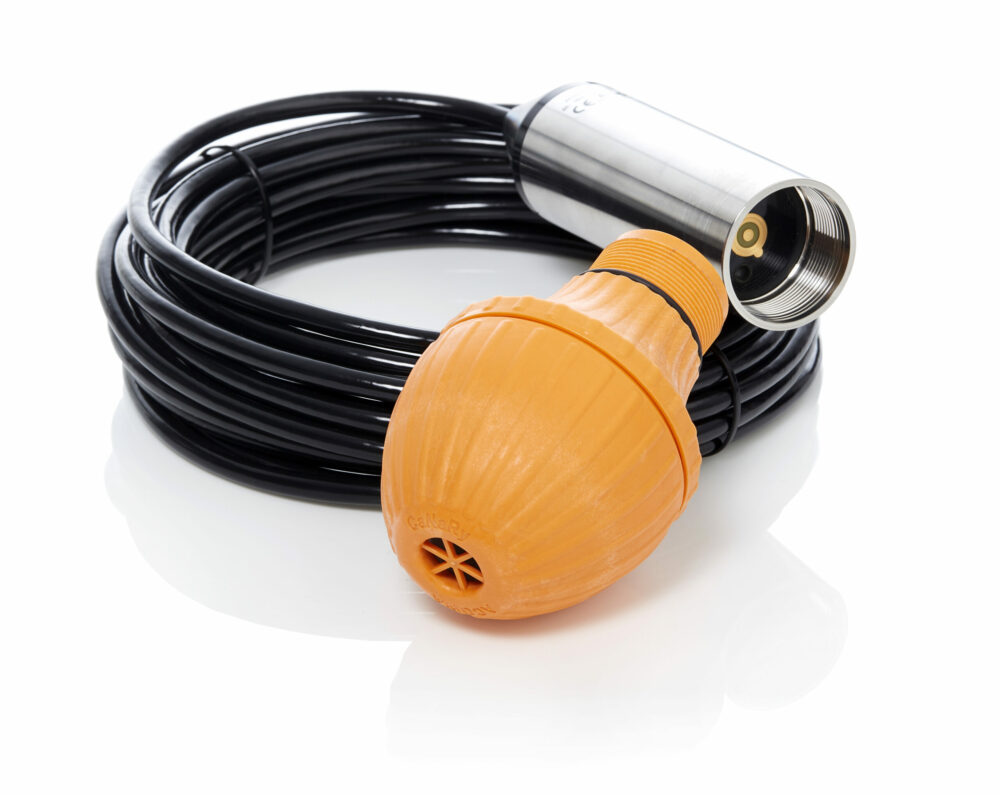

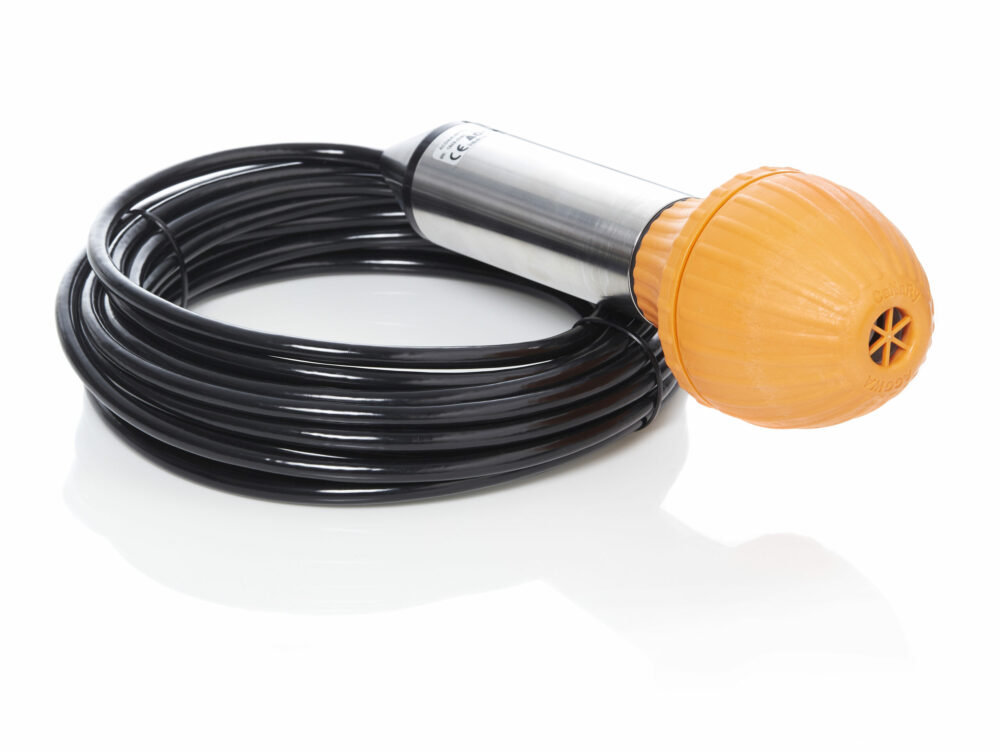

CaNaRy Hydrogen sulphide meter
ACOWA CaNaRy is a unique hydrogen sulfide meter that can measure hydrogen sulfide in gaseous form at concentrations from 0-300ppm, and converts this to a standard 4-20mA signal.
CaNaRy is delivered fully calibrated and ready for installation with a 10m cable and does not need to be calibrated for the entire lifetime of the cell. The lifetime is expected to be 2 years minimum.
CaNaRy is designed in a robust design for installation in pumping stations and other sewage related applications.
CaNaRy is developed on the same principle as our TurTle pressure transmitter, with replaceable measuring cell and standard 4-20mA signal for easy data collection.
- Pumping Stations
- Sewage Treatment Plants
- Measure wells
| Sensor type | Sure Cell |
| Size | L = 235mm, W = 81mm |
| Weight | 760g without cable |
| Wire connection | Red = Supply, Green = Signal, Black = Screen |
| Cable length | 10m, 15m or 30m. |
| Free fall drop | 30 cm |
| Enclosure class | IP65 |
| Supply | 24V DC (10V DC – 28V DC) |
| Max. overpressure | 6 bar |
| Measuring range | 0-300ppm |
| Measurement signal | 4-20 mA |
| Resolution | 0.25ppm |
| Largest diameter | 81mm |
| Sensor housing | Impact resistant PP (Fiberglass 30%) |
| Cable housing | AISI 304 |
| Cable clamp | TPU |
| Cable material | PUR |
| Max. operating temperature | +50°C |
| Life expectancy | 2 years in one – non-condensing relative humidity |
| Operating temperature | -20°C to +50°C |
| Certificates | CE |
