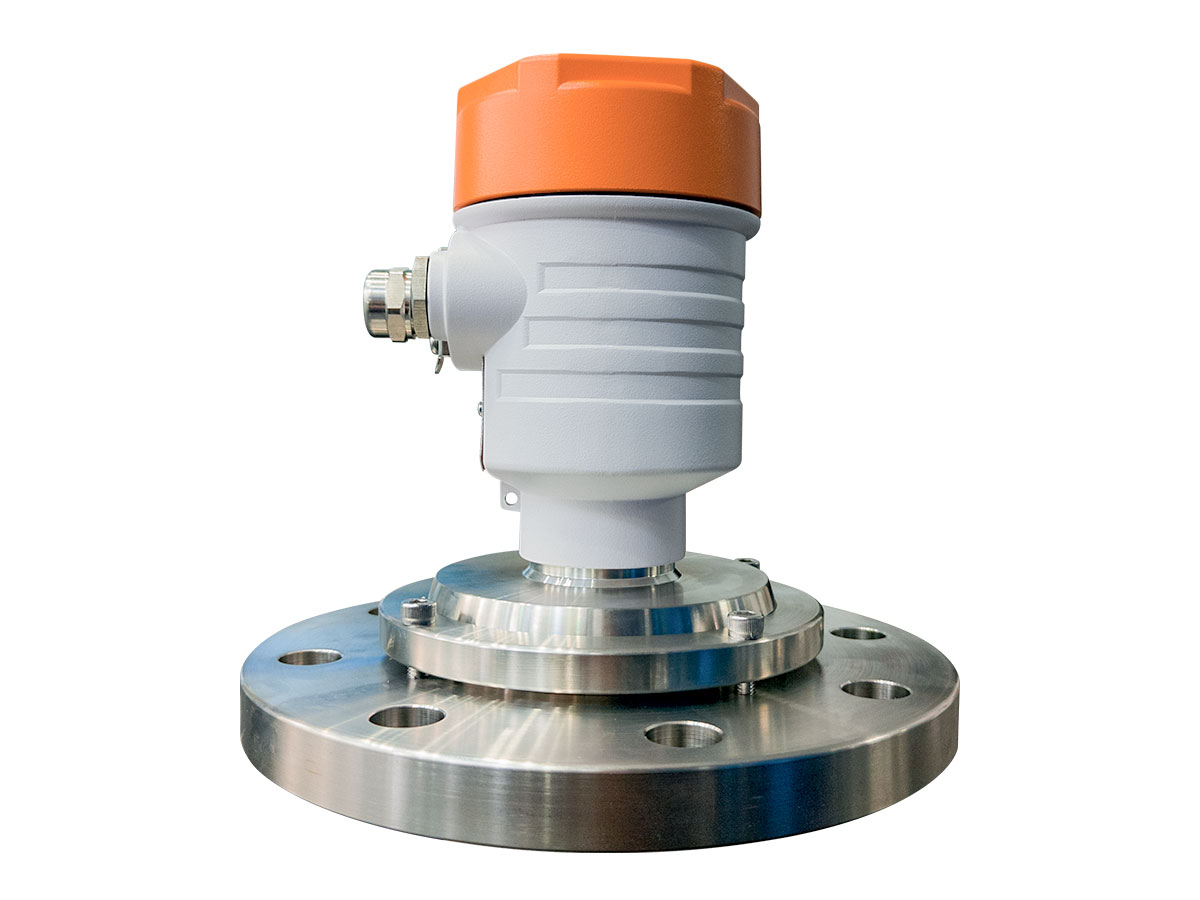

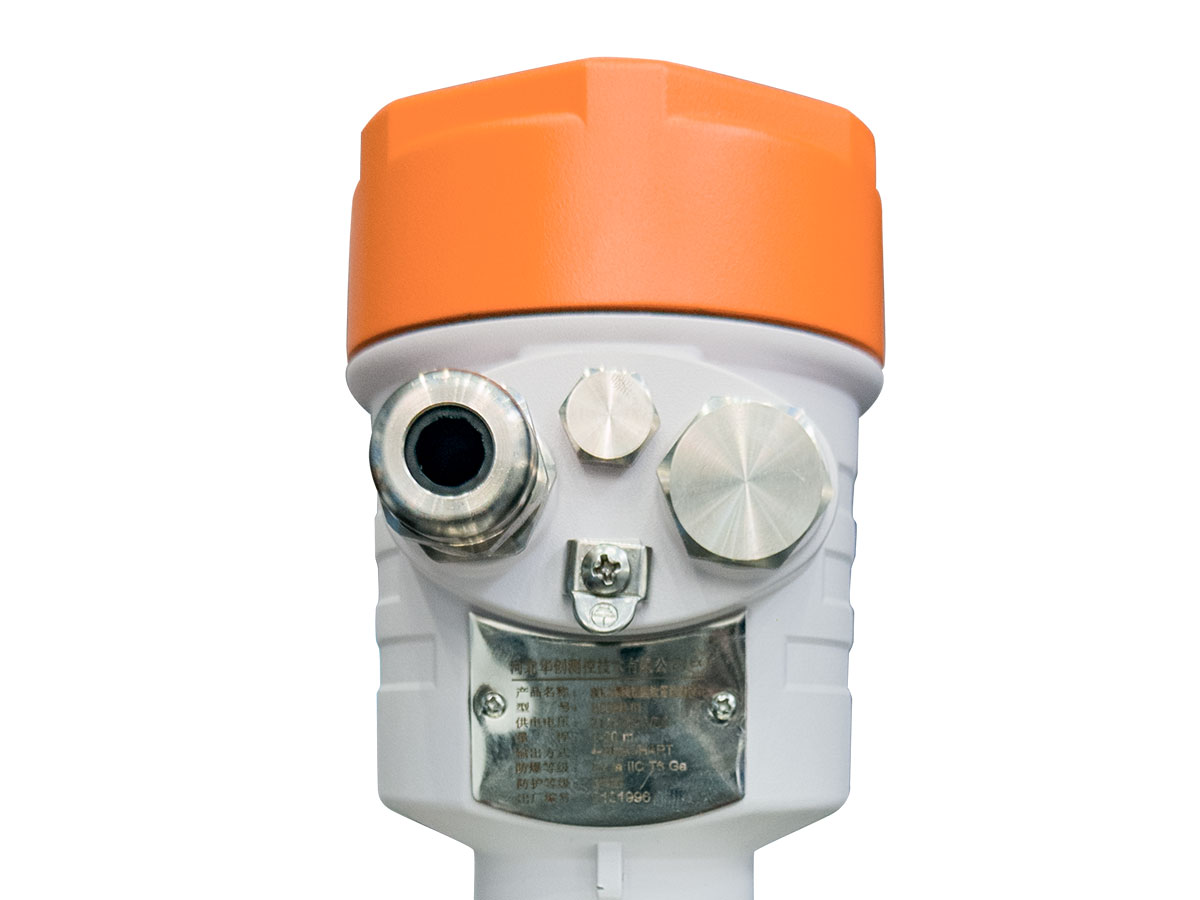

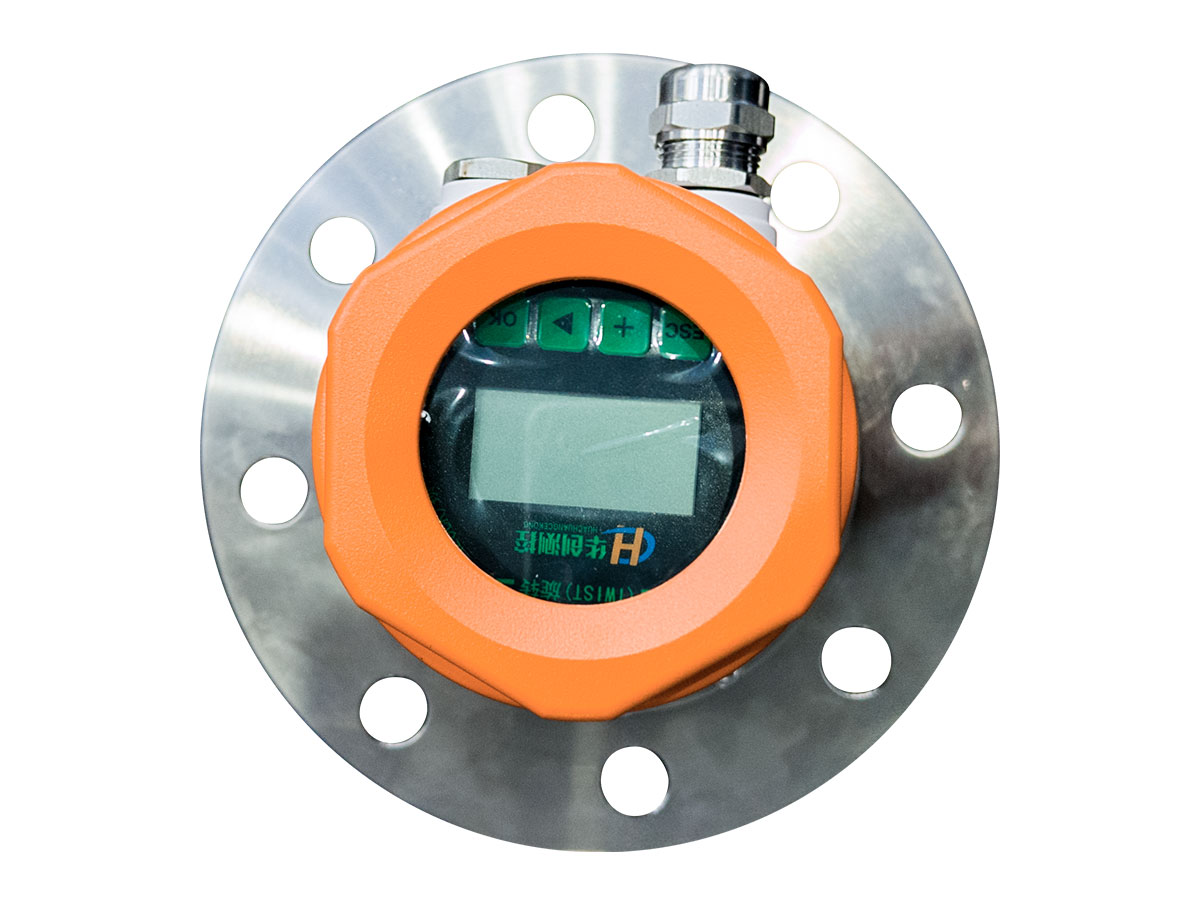

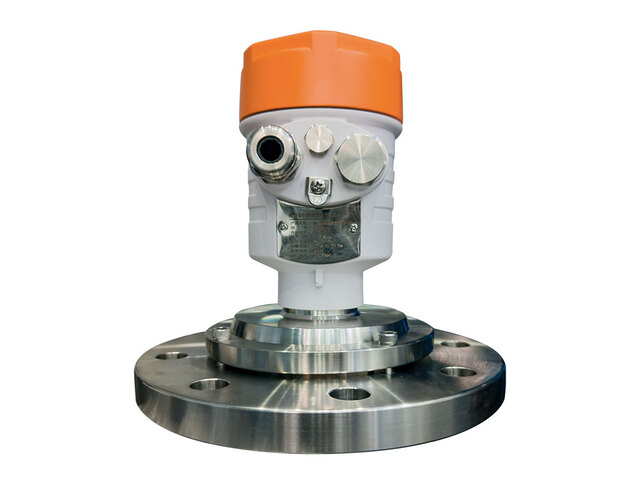

HCDAR-81S Measurement Of Solid
Applicable to liquid or solid measurement, antenna beam angle is small, suitable for tank with large diameter and small height occasions.
1. Based on the complementary metal-oxide-semiconductor transistor (CMOS) components with high compact architecture, gives higher signal to noise ratio and smaller blind zone.
2. 5GHz working bandwidth means higher measurement resolution and accuracy.
3. 3°antenna beam angle, so the interference in the environment has less impact on the instrument and the installation is more convenient.
4. Shorter wavelength offers better reflection performance on solid surface, so the universal flange is not necessary.
5. Supporting remote debugging and upgrading, reduce waiting time and improve the working efficiency.
| Application | Measurement Of Solid |
| Measuring Range | 0～10m |
| Beam Angle | 3° |
| Response Time: | <0.6s ( Due To Parameter Setting) |
| Medium Temperature | （-40～120）℃ |
| Process Pressure | （-0.1～2）MPa |
| Accuracy: | <2mm |
| Signal Output: | （4～20）mA HART |
| Working Frequency | （76 ~ 81）GHz |
| Explosion Proof Grade | Ex d[ia Ga] IIC T6 Gb |
