ChannelMaster
- Accurate: Teledyne RDI Broadband technology allows for small cells and/or short averaging sampling intervals, thus increasing your data accuracy.
- Robust: Collect highly accurate velocities even in difficult environments such as slow flow or rapidly changing flow.
- Versatile: ChannelMaster offers a range of 1-128 user-selectable cell sizes from 25 cm - 8 m and profiling ranges from 1 m - 300 m (frequency dependent).
- Sturdy: Comes standard with stainless steel mounting fixture.
- SDI-12 interface for connection to existing data loggers or remote data transmission systems

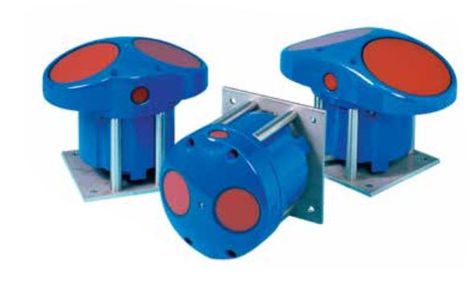

The compact, flexible, and affordable CHANNELMASTER is a horizontally-oriented Acoustic Doppler Current Profiler (H-ADCP) designed to collect high-accuracy water velocity, stage, and discharge data for a wide array of applications. By leveraging Teledyne RDI’s BroadBand technology, ChannelMaster allows you to obtain unmatched data quality, even in low velocities and complex flows, where a single cell cannot provide enough information.
The ChannelMaster’s innovative design includes everything you need to collect high-quality data. The standard unit comes equipped with temperature, pressure, pitch and roll sensors, and a vertical beam.
CM300
| Frequency | 300 kHz |
| Profiling Range | 4 m1) to 300 m2) |
| Velocity Range | ± 5 m/s default, ± 20 m/s maximum |
| Accuracy | ± 0,5 % of water velocity relative to ±2 mm/s |
| Resolution | 1 mm/s |
| Number of Cells | 1-128 |
| Cell Size | 1 m to 8 m |
| Blanking Distance | 1 m |
| Transducer Geometry | 2 beams, ± 20° |
| Beam Width | 2.2° |
CM600
| Frequency | 600 kHz |
| Profiling Range | 2 m1) to 900 m2) |
| Velocity Range | ± 5 m/s default, ± 20 m/s maximum |
| Accuracy | ± 0,5 % of water velocity relative to ±2 mm/s |
| Resolution | 1 mm/s |
| Number of Cells | 1-128 |
| Cell Size | 1 m to 4 m |
| Blanking Distance | 0.5 m |
| Transducer Geometry | 2 beams, ± 20° |
| Beam Width | 1.5° |
