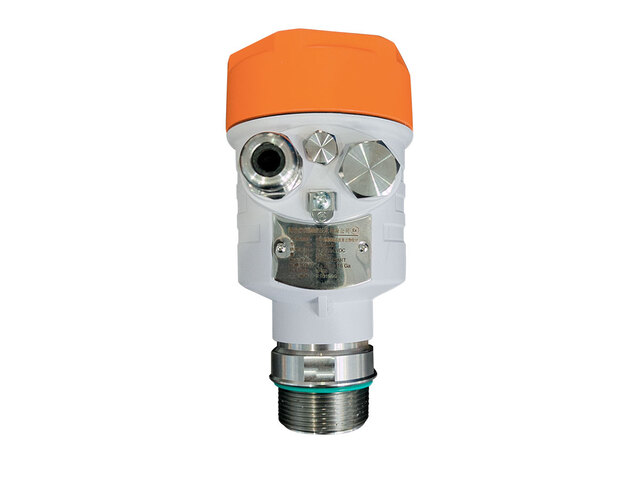

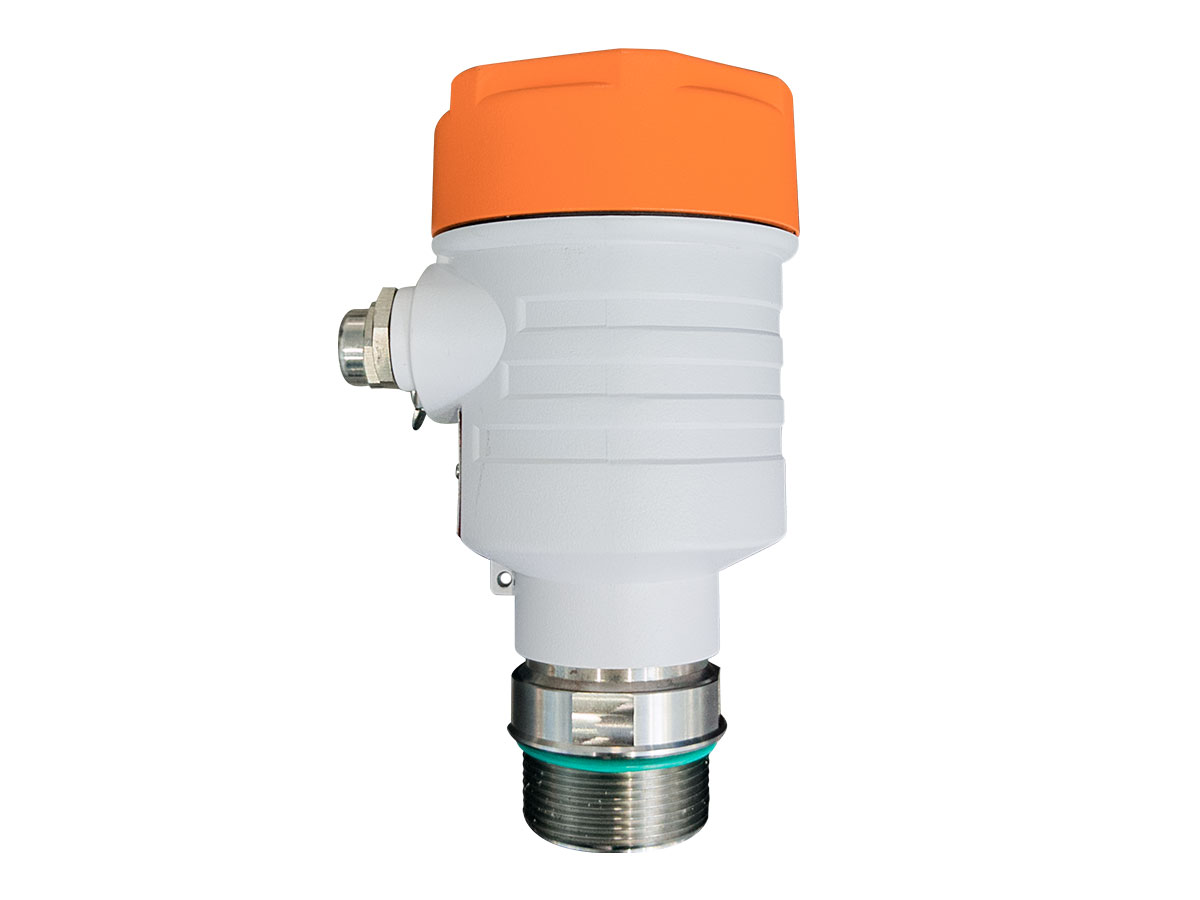

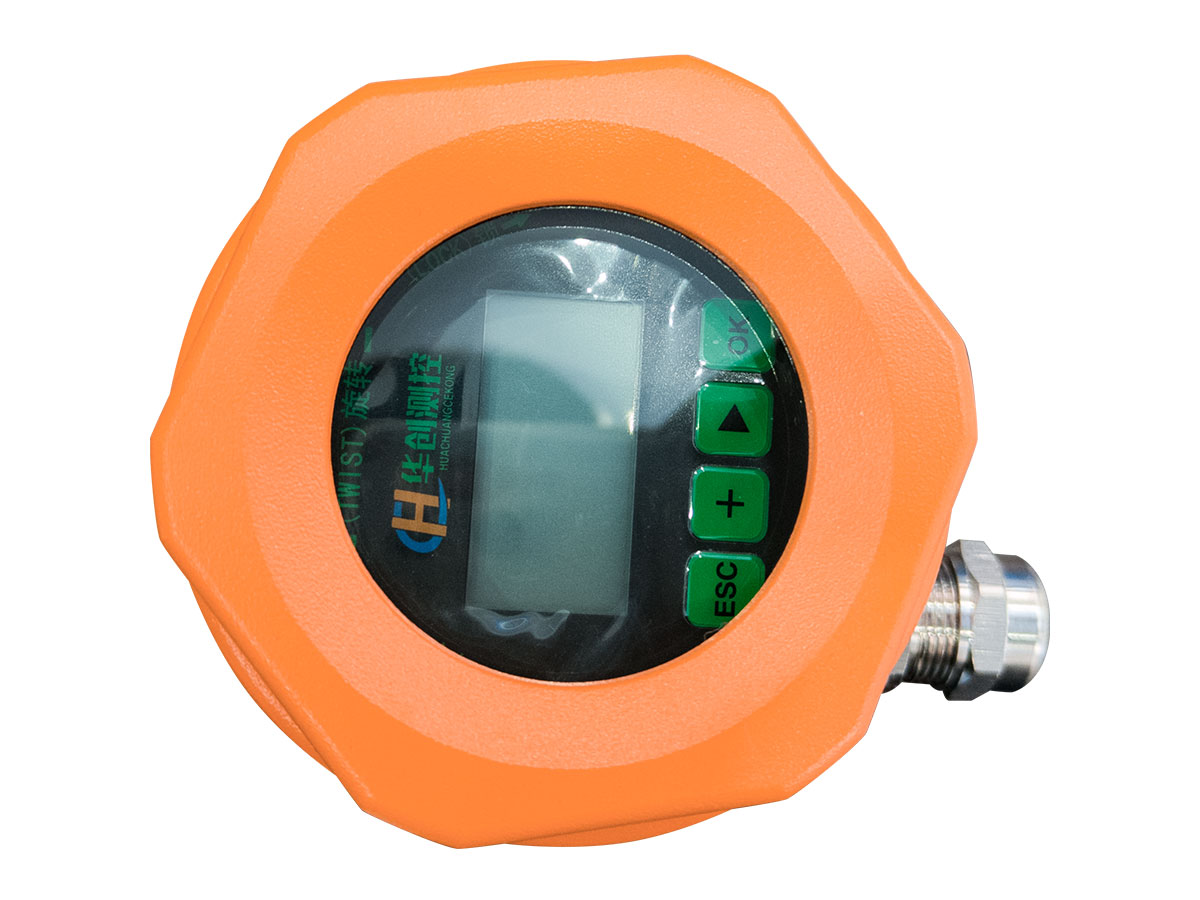

HCDAR-81 Liquid Solid Powder
Applicable to liquid or solid measurement, antenna beam angle is small, suitable for tank with large diameter and height occasions.
1. Based on the complementary metal-oxide-semiconductor transistor (CMOS) components with high compact architecture, gives higher signal to noise ratio and smaller blind zone.
2. 5GHz working bandwidth means higher measurement resolution and accuracy.
3. 3°antenna beam angle, so the interference in the environment has less impact on the instrument and the installation is more convenient.
4. Shorter wavelength offers better reflection performance on solid surface, so the universal flange is not necessary.
5. Supporting remote debugging and upgrading, reduce waiting time and improve the working efficiency.
| Application | Measurement of Liquid,Solid |
| Measuring Range | 0～120m |
| Antenna Type | Lens /PTFE |
| Mounting Thread | Thread G3.5 Antenna Diameterφ70mm |
| Beam angle | 3° |
| Response Time | <0.6s ( Due To Parameter Setting) |
| Medium Temperature | （-40～120）℃ |
| DK Value Of Medium | >1.5 |
| Process Pressure | （-0.1～2）MPa |
| Accuracy | <2mm |
