- Radar sensors for non-contact level measurement in flowing waters, lakes, reservoirs and retention basins
- Measurement ranges and accuracy: 0-8 m (± 5 mm), 0-15 m (± 2 mm), 0-30 m (± 2 mm), 0-120 m (± 5 mm)
- Protection class IP66/68

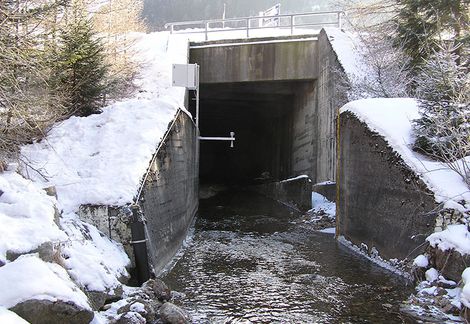

- Mounting on bridges, outriggers, piers and walkways
Contactless:
The SEBAPuls does not come into direct contact with the measured medium. Therefore, the measuring cell is not affected by a gauging sectional narrowing, even by undesirable deposits (e.g. lime, mud, sand, etc.).
Low-wear:
The radar sensor operates without any wear at all: even routine maintenance works are usually not required.
Easy Installation:
With the help of mounting clamps and brackets, SEBAPuls can be easily fixed onto bridges or piers.
Robust, precise:
Whether it rains or snows, the pulse method measures the water level reliably and with high measurement accuracy, even with large temperature fluctuations.
Self-sufficient:
Owing to the low power consumption, SEBAPuls can also be operated autonomously with a solar panel or a 12 V replaceable battery.
|
Type: |
SEBAPuls 8 | SEBAPuls 15 | SEBAPuls 30 | SEBAPuls 120 |
|---|---|---|---|---|
|
Measuring range: |
0-8m | 0-15m | 0-30m | 0-120m |
|
Measuring accuracy: |
±5mm | ±2mm | ±2mm | ±5mm |
|
Housing |
||||
|
Material: |
PVDF | PVDF | PVDF | PVDF |
|
Dimensions: |
ø 68 mm, Length: 109 mm |
ø 68 mm, Length: 109 mm |
ø 76 mm, Length: 130 mm |
Ø115mm, Length 241mm |
|
Protection class: |
IP66/68 | IP66/68 | IP66/68 | IP68 |
|
Output: |
4 … 20 mA | 4 … 20 mA, Modbus, SDI-12 |
4 … 20 mA, Modbus, SDI-12 |
4 … 20 mA, Modbus |
|
Operating |
-40°C - 60°C | -40°C - 80°C | -40°C - 80°C | -40°C - 80°C |
