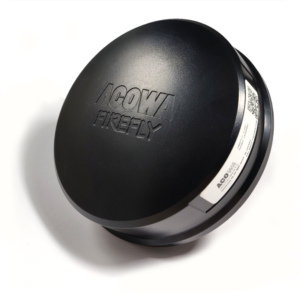

Firefly Intelligent alarm unit
Firefly
Firefly Intelligent alarm unit Firefly
Firefly Intelligent alarm unit
Water

FIREFLY is designed for the use as a simple alarm device according to the term “The local red alarm lamp has become intelligent”.

FIREFLY is a battery-powered or fixed 3V DC intelligent alarm unit that can replace the existing red alarm lamp, so that pump alarms and high-water level switch are sent directly to the SCADA-system via AcowaCore.

FIREFLY comes with 2 digital inputs and 1 analogue input 0-10V DC. This is used for measuring pump current for the detecting of number of starts and operating time in total values, as well as possibility for pump status (On or OFF), in a 5 minutes resolution. This is only with the use of a external power coil.

FIREFLY can be delivered with a 5-year Sigfox subscription and batteries or power supply – ready to install.

Go to AcowaDash with FIREFLY…

  • Operating data from pumping stations
  • Level alarm on treatment plant
  • Stormflow
  • Level alarm from wells
  • Level alarm in rivers or streams
  • Level alarm reservoir and tanks
Specifications:
Material ABS plastic
Diameter 104mm
Installation Min. 38mm hole with nut
Cable connection 4 pcs. clamps
Communication SigFox
Antenna Build-in
Enclosure class IP67
Power supply 3V DC – 3,7V DC
Batteries 2 pcs. Lithium AA (not included)
