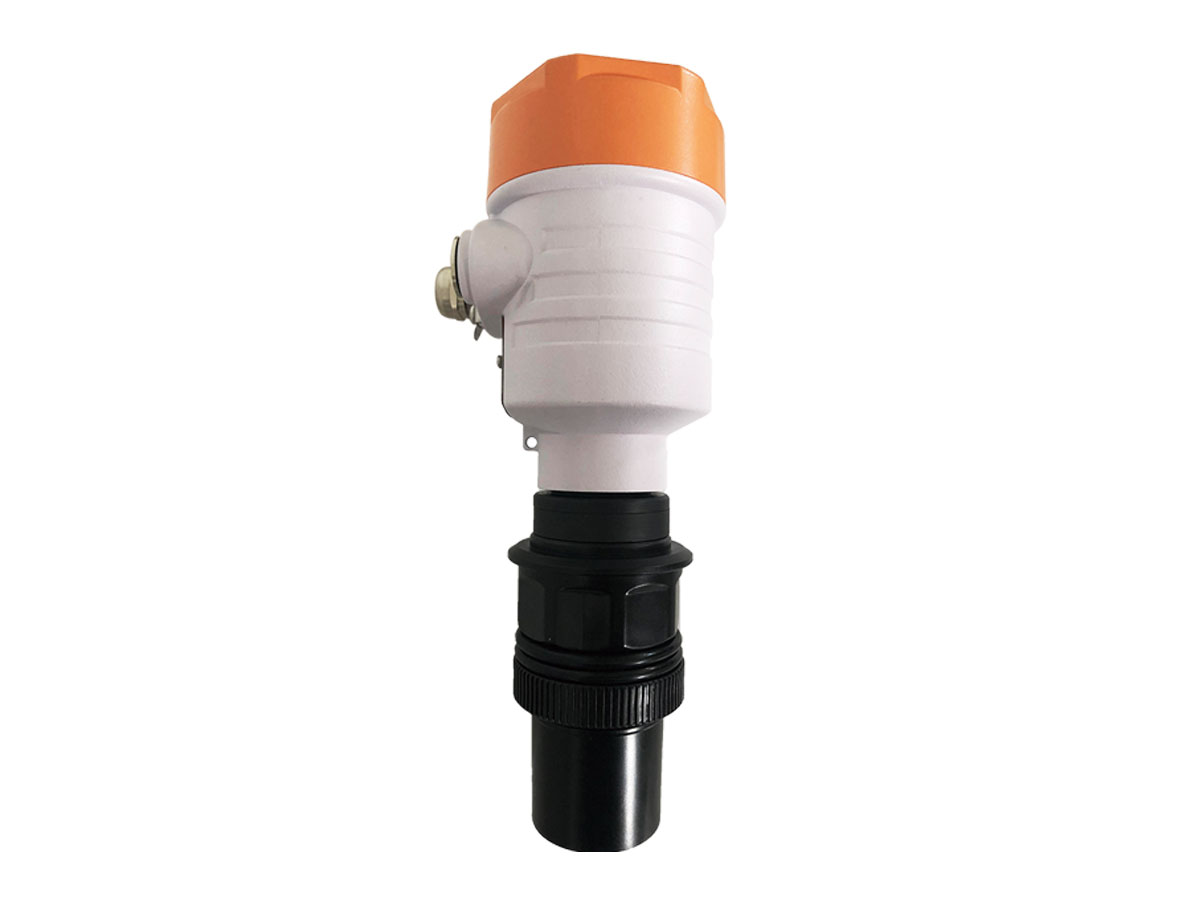

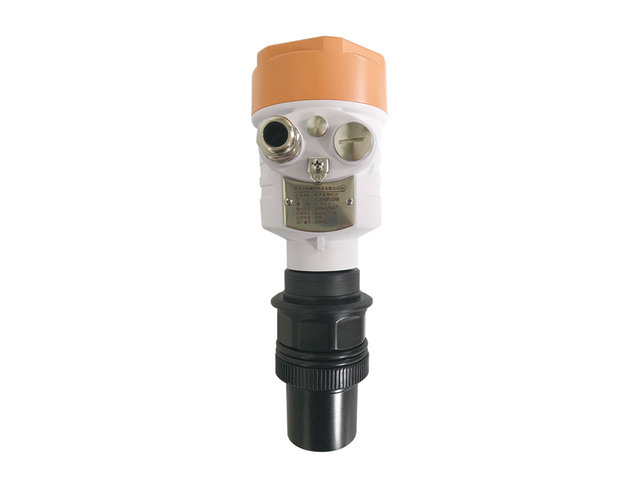

HCUS-300 integrated ultrasonic level sensor is HART main bus type, and the output is 4-20mA+HART bus. Used to measure solids or liquids.
Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instrument. It is a low-cost measuring device for measuring liquids, slurries and solids at industrial sites. It is widely used in water treatment, municipal, chemical, metallurgical and mechanical manufacturing industries.
1. None-contact continuous measurement, reduce maintenance
2. Automatic power adjustment, gain control, temperature compensation.
3. Advanced detecting technology, rich software functions to adapt to a variety of complex environment.
4. Various output forms: programmable relay output, high-precision 4-20mA current output, rs-485 digital communication output.
5. Good directivity, strong penetrability, easy to obtain more concentrated sound energy to get further transmission distance.
| Application | Solids,Liquids |
| Measuring Range | 0～20m |
| Connection Process | Thread |
| Process Pressure | ≤0.3MPa |
| Accuracy | 0.25%-1.0% |
| Protection Grade | Probe IP67 |
| Signal Output | (4-20)mA/HART |
| Explosion-proof Grade | Ex d IIB T4 Gb, Ex ib IIB T6 Gb |
