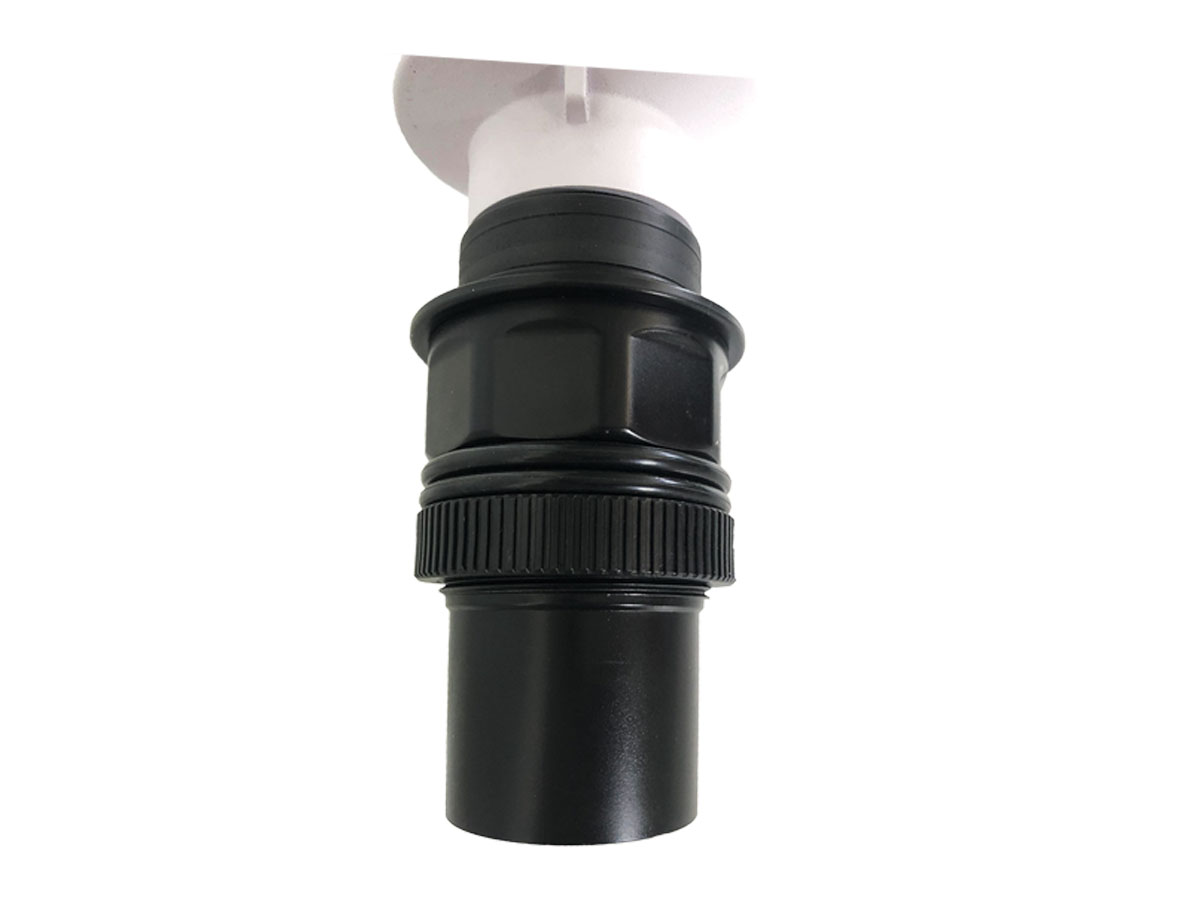

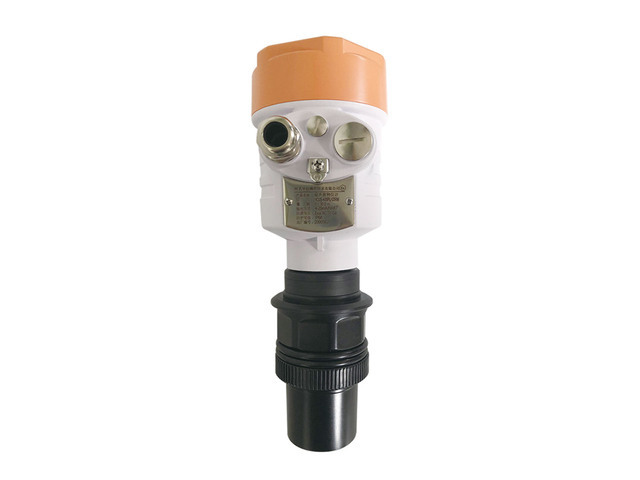

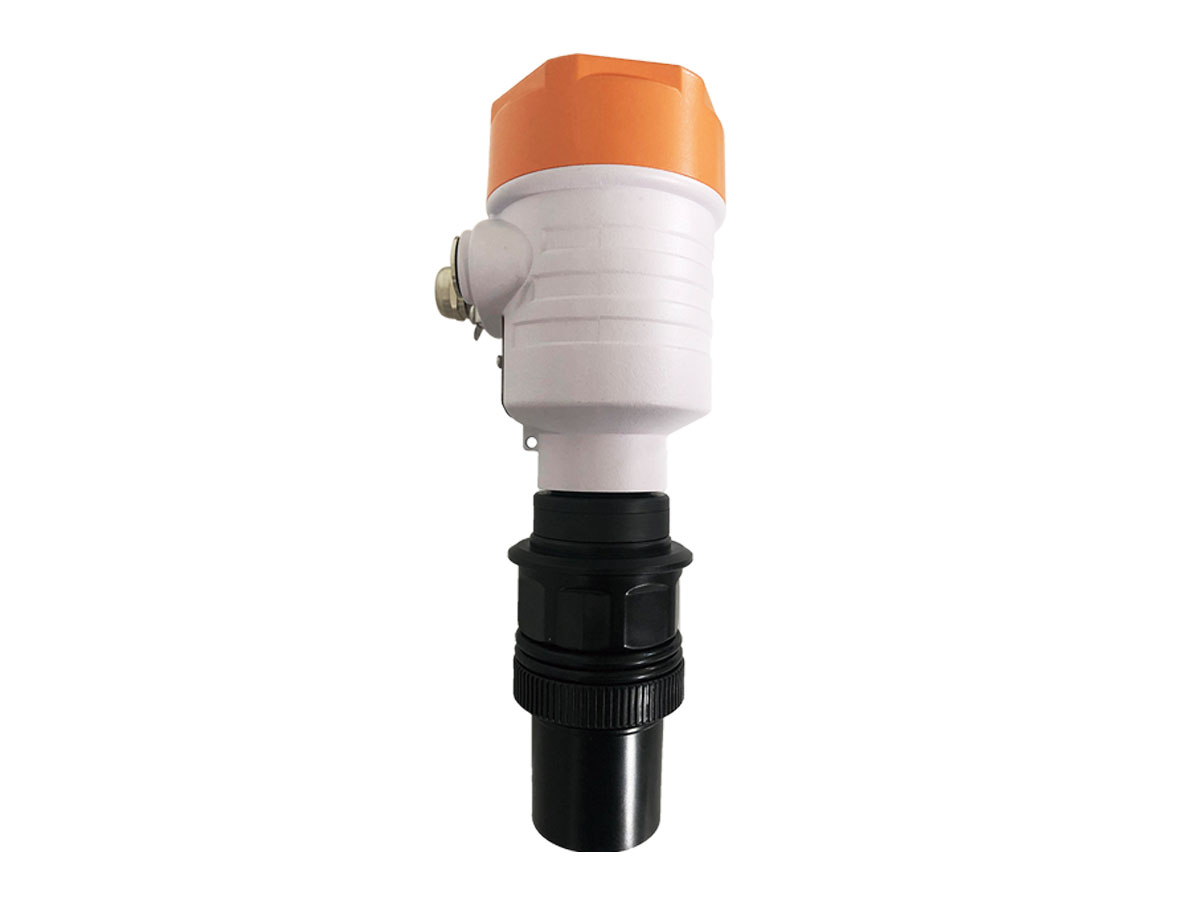

HCUS-500 integrated ultrasonic level sensor, optional 2-wire 4-20mA specific aluminium alloy case for flameproof requirements.Suitable for higher grade applications.
Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instrument. It is a low-cost measuring device for measuring liquids, slurries and solids at industrial sites. It is widely used in water treatment, municipal, chemical, metallurgical and mechanical manufacturing industries.
Advantages:
1. None-contact continuous measurement, reduce maintenance.
2. Automatic power adjustment, gain control, temperature compensation.
3. Advanced detecting technology, rich software functions to adapt to a variety of complex environment.
4. Various output forms: programmable relay output, high-precision 4-20mA current output, rs-485 digital communication output.
5. Good directivity, strong penetrability, easy to obtain more concentrated sound energy to get further transmission distance.
| Application | Liquid, solid |
| Measuring Range | 0 - 20 m |
| Connection Process | Thread |
| Protection Grade | Meter IP 66 / Probe IP 68 |
| Process Pressure | ≤0.3MPa |
| Accuracy | 0.5 - 1.0 % |
| Signal Output | (4-20)mA Two Wire |
