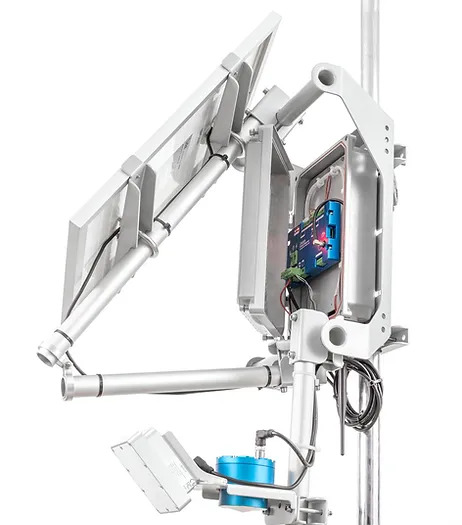

Hydrostation open

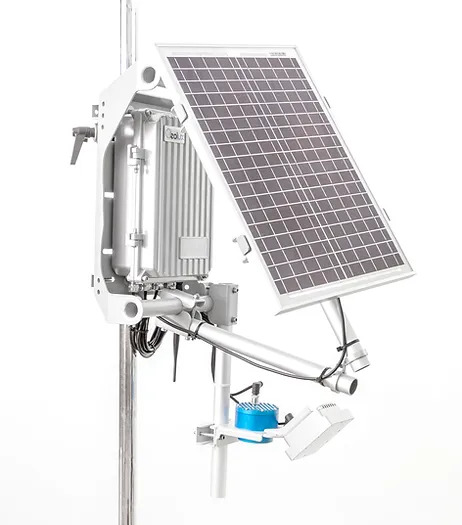

Hydrostation close

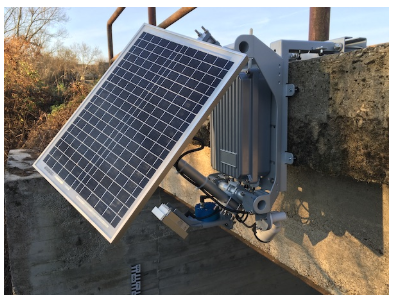

HydroStation_1
HydroStation_2
Hydrostation open Hydrostation close HydroStation_1 HydroStation_2
HydroStation

The Geolux HydroStation is an automated hydrological monitoring station that integrates several Geolux products for tracking hydrology parameters. HydroStation contains a solar panel, battery, SmartObserver datalogger with integrated communication module, and Geolux radar instruments for measurement of water level and surface velocity. Integration of third party sensors for meteorological measurements, water quantity or air quality and similar instruments is possible and easy to install.

The Geolux HydroView cloud-based software enables continuous real-time monitoring of all measurements, and easily configures the settings of all stations and instruments within working parameters.

The Geolux HydroStation is an automated hydrological monitoring station that integrates several Geolux products for tracking hydrology parameters. HydroStation contains a solar panel, battery, SmartObserver datalogger with integrated communication module, and Geolux radar instruments for measurement of water level and surface velocity. Integration of third party sensors for meteorological measurements, water quantity or air quality and similar instruments is possible and easy to install.

The Geolux HydroView cloud-based software enables continuous real-time monitoring of all measurements, and easily configures the settings of all stations and instruments within working parameters.

Product highlights

  • Complete integrated solution for hydrology measurements
  • Completely self-sustainable with a battery, a solar panel, and a datalogger with an integrated MPPT battery charger
  • Easy integration of third-party hydromet sensors
  • Robust modular mechanical design with IP68 enclosure
  • Preassembled and easy to install
  • Highly integrated hydrological monitoring station
  • Compact vandal-proof enclosure
  • Adjustable solar panel holder
  • Holders for all instruments included
  • Enables quick on-site installation and deployment
  • Hardened IP68 aluminum enclosure
  • Includes radar-based water level meter and surface velocity radar for water level and discharge measurement
  • Includes Geolux HydroCam camera for visual inspection of monitoring site
  • Lithium battery and solar panel for continuous power supply
  • GPRS-enabled datalogger with MPPT battery charger
  • Designed to work with Geolux HydroView software
  • Water level monitoring in rivers, channels and lakes
  • Early flood warning
  • Accurate discharge monitoring in rivers
  • Flow tracking in salt and copper mine channels
  • Water reservoir monitoring and irrigation control
Power Supply   20 W solar panel
Backup Battery  30 Ah lithium-ion IP
Rating IP68
Operating Temperature -20 °C to +70 °C
Installed Instruments  Geolux LX-80 radar level sensor, Geolux RSS-2-300W surface velocity radar, Geolux HydroCam site monitoring camera
Optional Instruments  Any SDI-12 or Modbus compatible device
Connectivity
  • GPRS 2G/3G/4G NB-IoT
  • Optional LoRaWAN
  • Optional SWARM satellite
