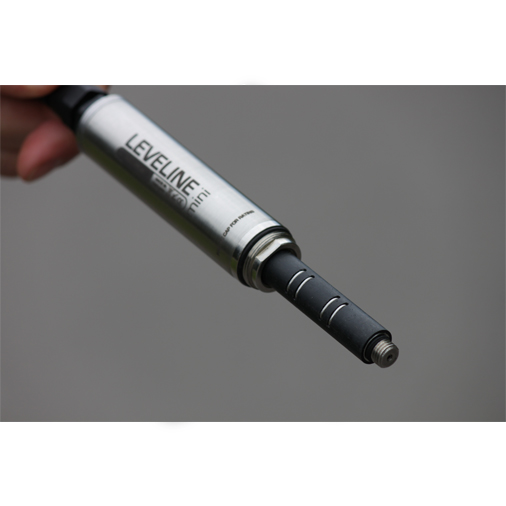

The LeveLine-Mini can be purchased with a conductivity sensor included to give level, temperature, conductivity and salinity readings. This sensor comes with a connector on the back end of the probe so it can be connected to the Leveline PC kit for calibration using the LeveLink PC software.
The LeveLine-Mini-CTD uses the same 4 ring stainless steel conductivity as our multiparameter water quality probes for robust EC and salinity measurements.
The Leveline CTD is an ideal choice to measure level and conductivity levels in the following applications
- Salt water intrusion and soil salination monitoring
- Contaminant plume remediation monitoring and studies
- Leachate monitoring at landfills, mine, waste disposal storage sites
- Agricultural and storm water runoff monitoring
- Tracer tests
The leveline CTD is manufactured from titanium and is ideal for long term deployment in the harshest of environments. It also has a leading accuracy, 500,000 data point memory and direct SDI12/RS485 output. Absolute or gauge variants are to cover all the usual applications from groundwater to surface water.
Telemetry is also available to add this sensor into a large network of monitoring instruments and can be easily combined with our range of water quality aquaprobes.
| Temperature ranges | Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F) |
| Diameter | 22mm |
| Length | 260mm |
| Weight | 250g |
| Materials | Titanium body, Delrin nose cone |
| Output options | Modbus/RS485, SDI-12, Aquaread proprietary |
| Battery type & life | 3.6V lithium; up to 10 years (see note 1) |
| External power | 6 - 24 VDC |
