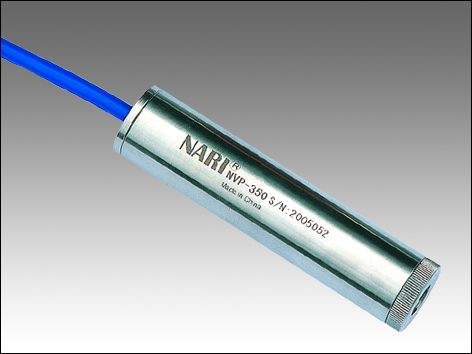

NVP Vibrating Wire Piezometer
- Used for seepage pressure monitoring of hydraulic structures or other geotechnical engineering.
- Suitable for long time buried in hydraulic building or other structures and its foundation or installed in the pressure tube, drilling, pressure, internal structure and the basis of measuring osmotic pressure or liquid level
- Can simultaneously measure the embedment point the temperature.
| Range (MPa) | 0.2, 0.35, 0.5, 0.7, 1.0, 1.6, 2.0, 2.5, 3.0, 5,0 |
| Resolution (%FS) | ≤0.05 |
| Accuracy (%FS) | Non-linearity: ≤0.5; Polynomial: ≤0.1 |
| Temperature Measurement Range (deg C) | -20 - +60 |
| Temperature Measurement Accuracy (deg C) | ±0.5 |
