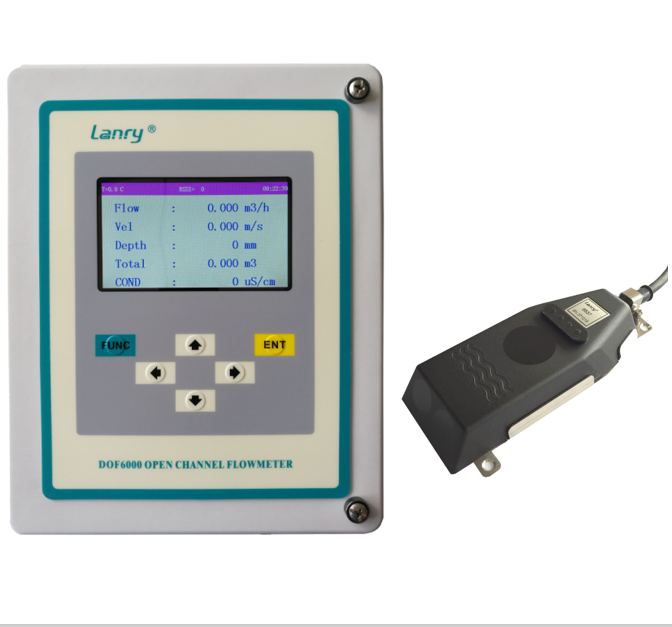

Partially Filled Pipe & Open Channel Flowmeter DOF6000-W

Categories Water , Flow & Velocity Measurement & Monitoring

The DOF6000 series flowmeter consists of flow calculator and the ultraflow 6537, it is used to measure water velocity, depth, pressure temperature and conductivity of water flowing in rivers, streams, open channels and pipes.

Overview

20 coordinate points to describe the river’s shape of cross section.
One instrument can measure the velocity, depth and conductivity at same time.
Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.
Depth Range: 0 to 10m
Measure velocity in both forward flow and back flow.
Depth is measured by both the pressure sensor and ultrasonic level sensor principles.
With coordinate correction and pressure compensation function.
IP68 Epoxy-sealed body design, long time under water.
RS485/MODBUS output, can contact computer directly.

Power Supply	Calculator: 220VAC & 24VDC；Sensor:12VDC
IP Class	Calculator: IP66，Sensor: IP68
Application	Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Sensor Material	Epoxy-sealed body, Marine Grade 316 Stainless Steel Mounting Bracket
Velocity Range	0.02m/s to 10m/s in one direction or bidirectional flow capacity
Velocity Accuracy	±2% measured velocity
Velocity Resolution	1mm/s
Depth Range	20mm to 5m (ultrasonic sensor) ;20mm to 10m (pressure sensor)
Cable	Standard 15m, maximum 100m
SDI-12	SDI-12V 1.3recorder (1200 baud smart instrument channel)
