Professional Weather Station
Easy to use, configurable multi-parameter weather stations
Designed and manufactured by Gill Instruments in the UK, MetConnect weather stations are the result of over 35 years of experience designing products for the professional weather market, and builds on the success of MetPak.
The Flexible high quality platform is the essence of MetConnect, allowing the user to select the sensors most relevant to their application, and easily combine data from those sensors with data from MetConnect’s integrated sensors. This approach reduces power and communications complexity and provides time synchronized data from multiple sensors.

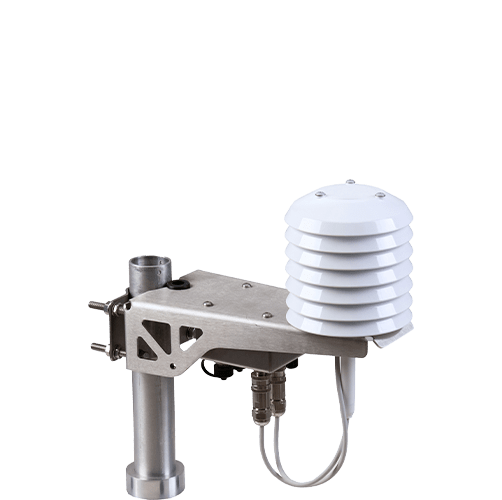

MetConnect One is an easy to use integrated weather station. MetConnect THP is available if the application does not require wind measurement or the user wishes to select a remote anemometer.
Output protocol options for MetConnect weather stations include RS232, RS422, RS485, SDI-12 and MODBUS.
Environmental protection to IP66/67 with easy to use, robust connectors.
Ultrasonic technology allows MetConnect to deliver highly accurate measurements with no moving parts to wear or recalibrate. As a result, MetConnect is extremely reliable and low maintenance.
- Three integrated sensors - temperature, humidity & pressure
- Single M12 connector for remote wind sensor
- Three M12 connectors to collect additional sensor measurements
- RS232, RS422, RS485, SDI-12, MODBUS outputs
| Air Temperature | |
| Range | -35°C to +70°C |
| Accuracy | 0.2°C (-35°C to +70°C) |
| Resolution | 0.1°C |
| Unit of measurement | °C, °F |
| Relative Humidity | |
| Range | 0-100%RH |
| Accuracy | 1.5%RH @ 25°C (0-80%RH), Typical 2% (-35°C to 70°C, 0-100%RH) |
| Resolution | 1% RH |
| Unit of measurement | % RH |
| Barometric Pressure | |
| Range | 300-1100 hPa |
| Accuracy | +/-0.5 hPa @ 0°C to 50°C |
| Resolution | 0.1 hPa |
| Unit of measurement | hPa, mbar, mmHg, inHg |
| Additional input | |
| Wind | For Gill anemometer (contact Gill Instruments for details) |
| Contact Closure | For tipping bucket rain gauge |
| PT100 Temp Probe | 4 wire PT100 conforms to IEC 60751 |
| Analogue 1 | 0-5V or 4-20mA loop or self powered |
| Analogue 2 | 0-5V or 4-20mA loop or self powered |
| Note | 5V power is available on additional sensor input connectors |
| Outputs | |
| Digital comms modes | RS232, RS422, RS485 (2 wire pt to pt), MODBUS, SDI-12 |
| Protocols | ASCII, SDI-12 v1.3, MODBUS (RTU and ASCII), NMEA0183 |
| Data output rates | 1 measurement per second, 1 measurement per 2 second, 1 measurement per 4 second, polled |
| Power supply | |
| Input voltage | 5-30V DC |
| Current @ 12V DC | <70mA @ 12Vdc |
| Connectivity | |
| Connectors | |
| Mechanical | |
| Bracket and Hub box | Stainless steel 316 construction |
| Installation fittings | Fit to 30mm to 58mm pole or mast |
| Weight | 3.0 kg |
| Environment & Regulatory | |
| Protection class | Hub Box and Pressure sensor: IP66 & IP67, Temperature & Humidity sensor: IP66 |
| EMC | EN61326:2013 |
| Operating temp. | -35°C to 70°C |
| Storage temp. | -40°C to 70°C |
| Regional markings | CE, UKCA, FCC Part 15 |
| RoHS compliant | Yes |
| Origin | UK |
| Software | |
| MetSet | Downloadable, free of charge software to set-up MetConnect products |
| MetView | Downloadable, free of charge software to display and log the measurement data produce by MetConnect products |
