Qubit Systems produces the only complete experimental package for measurement of nitrogen fixation in H2 producing legume symbioses – Q-Box NF1LP Nitrogen Fixation Package. The unique flow-through H2 sensor measures the production rate of H2 from N2-fixing tissues, allowing in vivo measurement of nitrogenase activity in real time. The Package contains everything required for successful experiments, including gas exchange pots for growing legume plants such as soybeans under nodule producing conditions, all the nutrient recipes and instructions. When combined with Qubit Gas Switching System measurements of nitrogenase activity on up to 3 plants is possible (4 channel system including reference)
Measurement of H2 evolution as a means of determining nitrogenase activity overcomes all the problems of the traditional acetylene reduction assay. The Q-Box NF1LP Nitrogen Fixation Package is perfectly safe, non-invasive and allows changes in nitrogenase activity to be measured as they occur in growing plants.
The Nitrogen Fixation Package contains everything required to conduct numerous laboratory investigations into the physiology and biochemistry of N2 fixation in an open-flow gas exchange system. Calibration of analyzers is simple, set-up time is minimal and experiments are easy to perform. This system is designed for laboratory use, it is not a field system.
Features
- A flow through gas analysis system for measurements in H2 evolving symbioses (Hup-)
- Non-invasive measurements of nitrogenase activity from nodulated roots

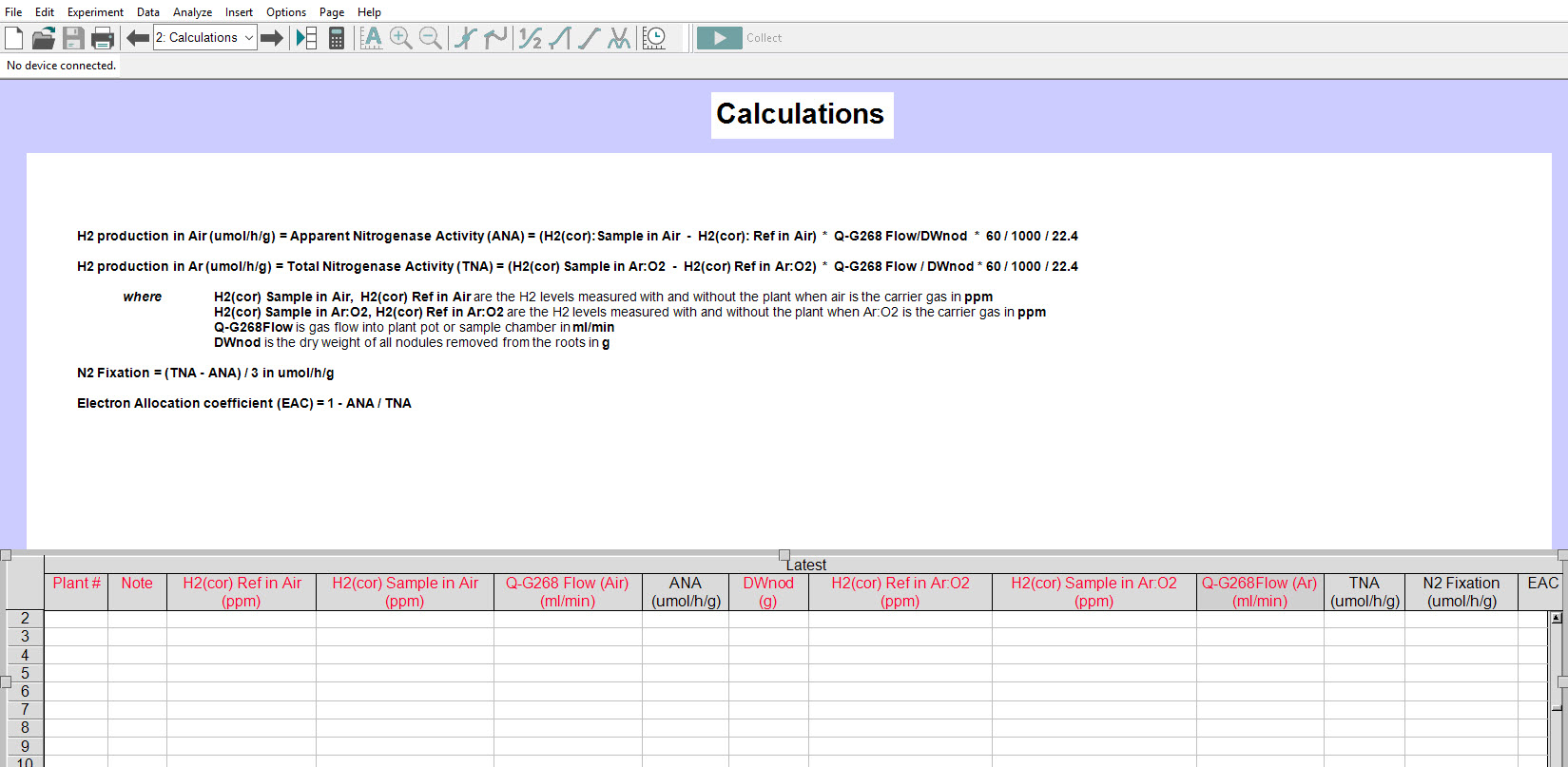

- Calculations of nitrogen fixation rates in the software
Applications
- Studies of Temperature Effects on Nitrogenase Activity
- Studies of Oxygen Regulation of N2 Fixation
- Studies of Electron Allocation Coefficient of Nitrogenase
- Studies of N2 Fixation and Photosynthate Supply
- Studies of Inhibition of N2 Fixation by Fertilizer Supply
- Q-S121 Hydrogen Analyzer (0-100ppm) includes drying column
- Q-S102 O2 Analyzer 0-100%
- C301 Event Switch (Air/Ar)
- S132 Temperature Sensor
- Q-G267 Pump & Flow Monitor (1L/min)
- Q-G268 Pump & Flow Monitor (2L/min)
- G122 Large Gas Bags (2x30L)
- G132 Plant Growth Pots (4) with lids, fittings and sealant (Qubitac)
- G161 Nodule Cuvette
- B201 Soybean seeds
- Bradyrhizobium japonicum inoculant
- C610 LabQuest mini (3) data interface system (9 channels)

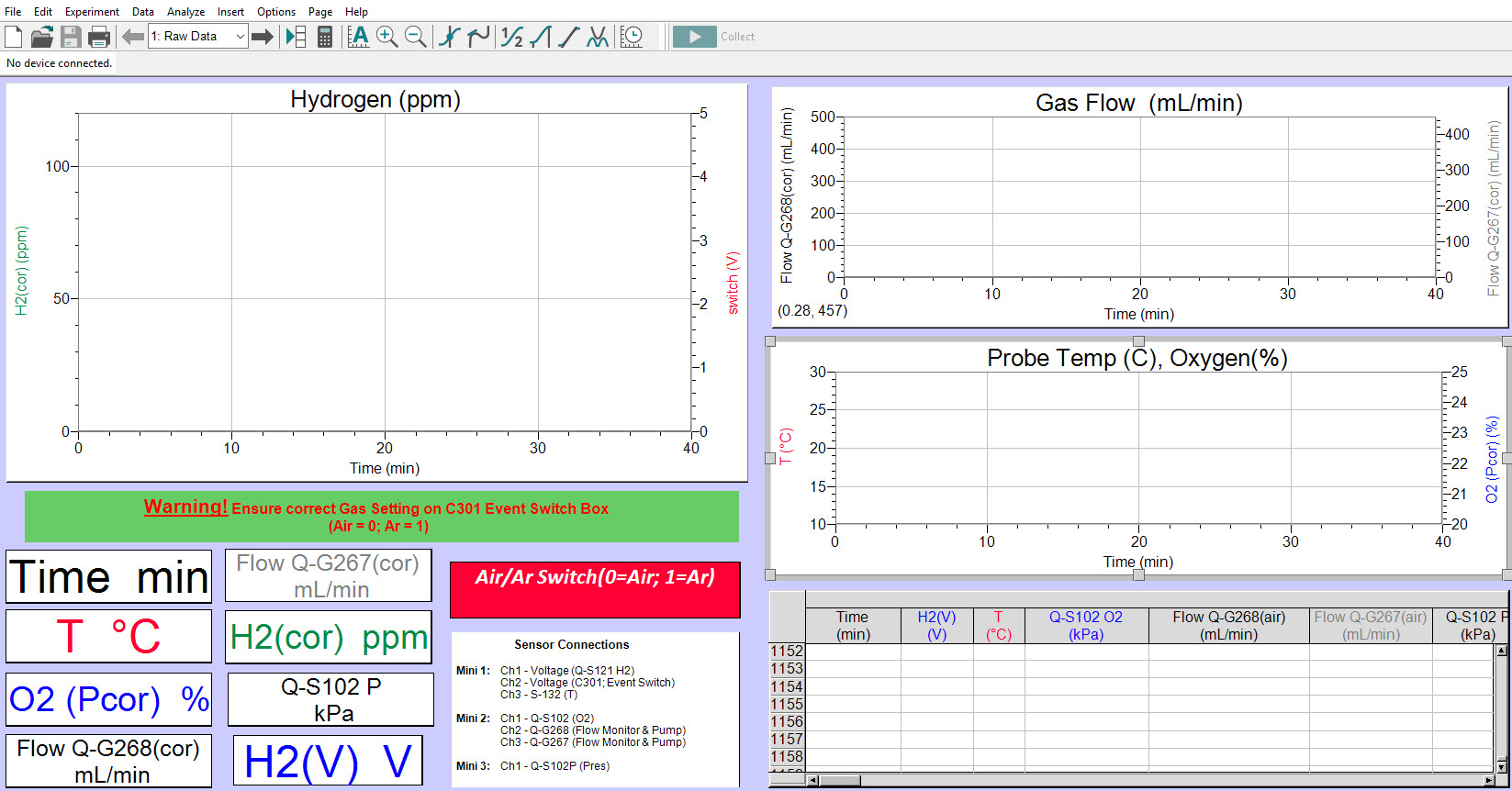

- C901 Logger Pro software
- C404 Customized Setup Software

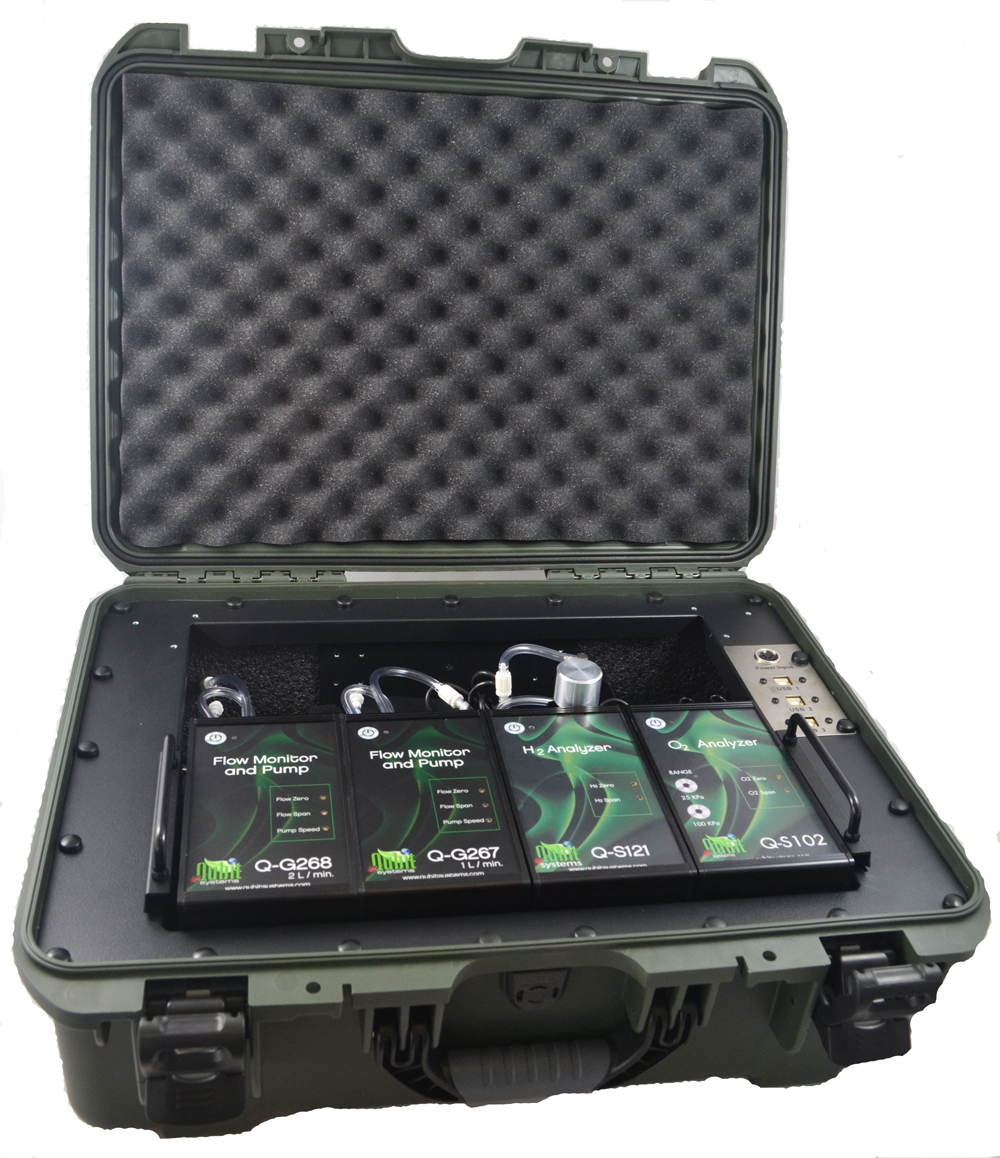

- Rugged water-proof case housing all analyzers and sensors
- Q-Box Accessory kit
Manual
Optional Components:
- Gas Switching System (for up to 4 channels)
- Wang X et al (2018) Coupling between nitrogen fixation and tetrachlorobiphenyl dechlorination in a rhizobium–legume symbiosis. Environ Sci Technol 52: 22178-2224
- Bulgarelli RG et al (2017) Mycorrhizae enhance nitrogen fixation and photosynthesis in phosphorus-starved soybean (Glycine max L. Merrill). Environmental and Experimental Botany 140: 26-33
- Ferreira C et al (2016) pH effects on nodulation and biological nitrogen fixation in Calopogonium mucunoides Brazilian Journal of Botany 39, 1015–1020
- Kassaw T, Bridges W, Frugoli J (2015) Multiple Autoregulation of Nodulation (AON) Signals Identified through Split Root Analysis of Medicago truncatula sunn and rdn1 Mutants. Plants 4(2), 209-224;
- Cabeza R et al (2014) An RNA sequencing transcriptome analysis reveals novel insights into molecular aspects of the nitrate impact on nodule activity of Medicago truncatula. Plant Physiology 164:400-411
- Justino GC, Sodek L (2013) Recovery of nitrogen fixation after short-term flooding of the nodulated root system of soybean. Journal of Plant Physiology 170:235-241
