The 41303-5A houses one 107, 108, 109, CS215, or HMP60 probe. The probe fits in the bottom of the shield and is held into place with screws.
The 41303-5A includes a 2-in. u-bolt with a plastic v-block. The u-bolt is placed in the holes on the side of the bracket for attachment to a mast or vertical pole. The u-bolt is placed in the holes on the bottom of the bracket for attachment to a crossarm
The 41303-5A replaced the 41301 in 2005. The biggest improvement of the 41301 is that it can be mounted to either a vertical pole or horizontal pipe. The retired 41301 only mounted to a vertical pole
- Naturally shades and protects the sensor
- Mounts directly to Campbell Scientific tripods and towers
- Used with HMP60, CS215, 107, 108, 109, HMP50, or CS500 probes

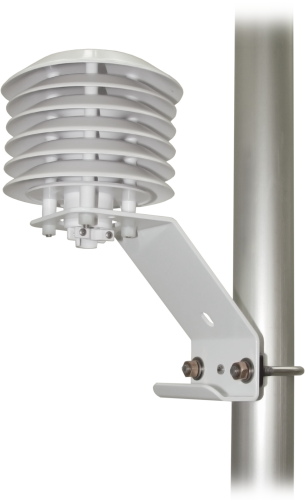

The 41303-5A, manufactured by R. M. Young Company, is a naturally aspirated, 6-plate radiation shield. Its louvred construction allows air to pass freely through the shield, serving to keep the probe at or near ambient temperature. The shield's white colour reflects solar radiation.
- CS 41303-5A 6-Plate Solar Radiation Shield provides a naturally aspirated radiation shield
- Used with HMP50, CS215, CS500, 107, or 108 probes
- Mounts directly to our tripods and towers
- Replaces our 41303 6-Plate Radiation Shield
| Construction | UV-stabilized white thermoplastic plates, aluminium mounting bracket, white powder-coated stainless-steel U-bolt clamp |
| Plate Diameter | 11.9 cm (4.7 in.) |
| Height | 11.4 cm (4.5 in.) |
| Weight | 408 g (0.9 lb) |
