MS & S-Series Compatible

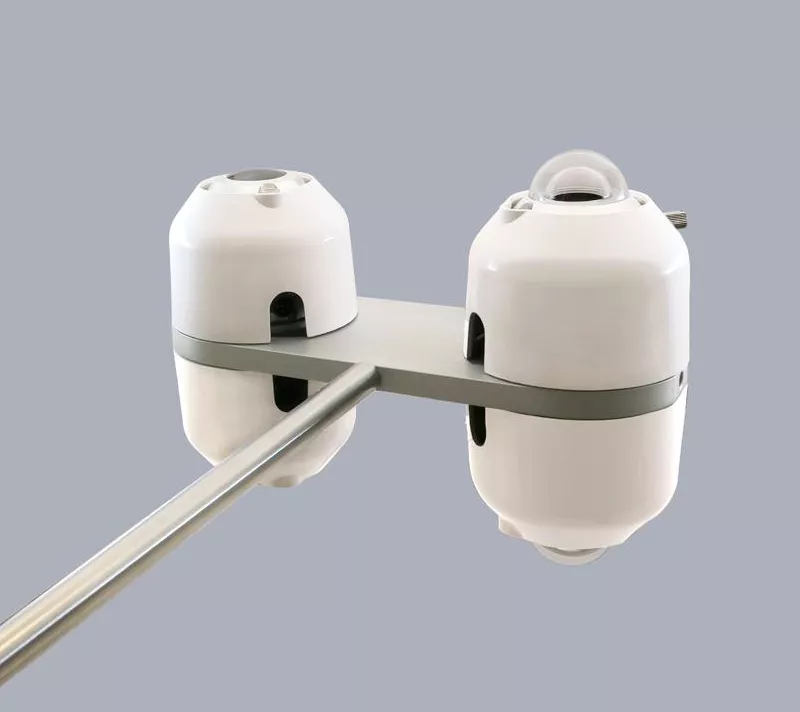

The MS-Albedo x4 Kit supports x4 component net-radiation measurements, with pyranometers and pyrgeometers mounted on MV-01 ventilator and heater units, ensuring constant albedo or reflected irradiance measurements for Bi-facial PV applications in all conditions.
The MS-Albedo x4 Kit is compatible with any MS & S-Series pyranometer and pyrgeometer, mounted on the MV-01 ventilator and heater to ensure constant albedo or reflected irradiance measurements for Bi-facial PV applications in all conditions.
The kit contains a mounting plate, 700 mm rod, albedo glare screen and mounting accessories, is easy to assemble on-site, and is made of robust aluminium and stainless steel parts.
The packaged albedo glare screen is recommended for GHI albedo applications to limit the field of view and avoid dome reflections at low solar elevation angles.
- Compatible with all MS & S-Series
- x4 sensor capacity for x4 component net-radiation measurement
- Mounting rod, rod mounting clamps and albedo glare screen
- Robust aluminium & stainless-steel construction
| Albedo Mounting Kit | 4 positions |
| Pyranometer (GHI) | MS & S-Series |
| Dimensions | Plate ø 250 x 95 mm / ø 15mm Rod L = 700mm |
| Compatible with MV-01 | No |
