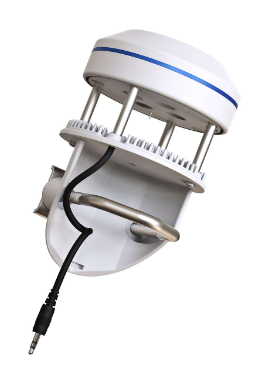

ATMOS 22
The ATMOS 22 sonic anemometer registers even the lowest thresholds of wind speed (0 m/s) with the added ability to detect fine-scale variations within 0.01 m/s resolution
It is a ultra low powered sonic anemometer, only running on less tha 100 µA, the ATMOS 22 fress you to make wind measurements in multiple locations without having to constanly change batteries.
| Wind Speed |
Range: 0 - 30 m/s Reseolution: 0.01 m/s Accuracy: 0.3 m/s or 3% of measurement |
| Wind Gust |
Range: 0 - 30 m/s Reseolution: 0.01 m/s Accuracy: 0.3 m/s or 3% of measurement |
| Wind Direction |
Range: 0 - 359° Reseolution: 1° Accuracy: ± 5° |
| Tilt |
Range: -90 - 90° Reseolution: 0.1° Accuracy: ± 1° |
| Signal Output | SDI-12 |
| Operating Temperature | -50°C to 60°C |
| Cable Length |
Standard: 5m Max. Length: 75m |
| Compliance | EM ISO/IEC 17050:2010 (CE Mark) |
