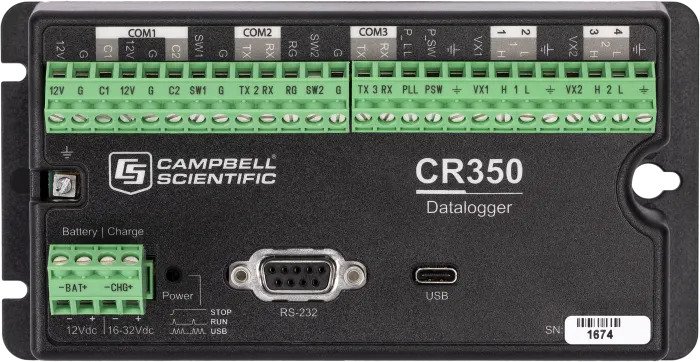

The CR350 is a multi-purpose, extremely low power, compact measurement and control data logger. This entry-level data logger, with its rich instruction set, can measure most hydrological, meteorological, environmental, and industrial sensors. The CR350 concentrates data, makes it available over varied networks, and delivers it using your preferred protocol. The CR350 also performs automated on-site or remote decision-making for control and M2M communications. This data logger is ideal for small applications requiring long-term, remote monitoring and control.
The following outlines the primary differences between the CR300, CR310 and CR350 dataloggers:
- The CR310 and CR350 offer removable connectors.
- The CR310 includes a 10/100 Ethernet connection.
- The CR350 has two independent RS-232/RS-485 ports and USB-C.
- The CR350 allow sensors signal output conversion to RS485.
The CR350 includes Wi-Fi, cellular, or the following radio options for different regions:
Note: Campbell Scientific does not recommend the CR350 for use as a PakBus router in networks with more than 50 devices. Large arrays or string variables may also reach memory limits. For such applications, a CR1000X datalogger is recommended.
- Two dedicated SDI-12 terminals to expand SDI-12 sensor use
- Extremely low current requirements
- Two dedicated RS-232/RS-485 terminals to support smart sensors or modems
- Easy setup with PC software and USB-C connectivity
- Ability to measure analog and digital sensors with confidence
- Trusted Campbell Scientific quality, including integral surge and ESD protection
- Integrated radio option to network wirelessly to another node or Internet gateway
- CR350-WIFI ideal for short-range, wireless IP communication
- Removable terminal block for easy wiring
- Ability to communicate anywhere using built-in cellular or satellite peripherals
- Integrated 12 V battery solar charge regulator to charge batteries
- Flexibility to connect with PakBus, Modbus, DNP3, GOES, and other standard communication protocols
- Multiple general-purpose I/O and programmability to analyze and control measurement acquisition
- Event-driven communications and physical outputs for notifications
| Maximum Scan Rate | 10 Hz |
| Analog Inputs | 4 single-ended or 2 differential (individually configured) |
| Pulse Counters | 8 (P_SW, P_LL, C1, C2, and SE1 to SE4) |
| Voltage Excitation Terminals | 2 (VX1, VX2) |
| Communication Ports |
USB Type C 2.0 RS-232 RS-485 |
| Switched 12 Volt | 2 terminals |
| Digital I/O | 7 terminals (C1, C2, P_SW, and SE1 to SE4) configurable for digital input and output. Includes status high/low, pulse width modulation, external interrupt, and communication functions. Exception: C2 and P_SW don’t do pulse-width modulation |
| Analog Input Limits | -100 to +2500 mV |
| Power Requirements | 16 to 32 Vdc for charger input (CHG) (Current limited to 1.1 A maximum for power converter or solar panel input.) |
| Communication Protocols | PakBus, PakBus Encryption, Modbus RTU/ASCII/TCP, DNP3, SDI-12, and others |
| CPU Drive / Programs | 50 MB serial flash |
| Data Storage | 50 MB serial flash |
