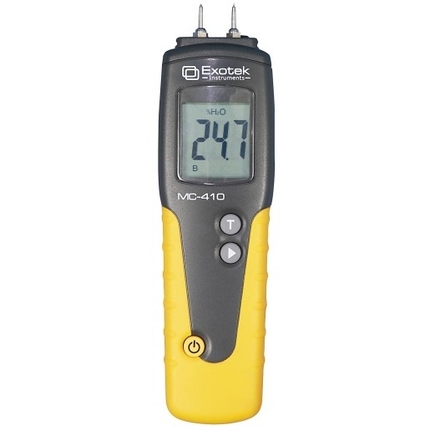

Exotek MC-410 Pin-Type Moisture Indicator
MC-410 Pin-Type Moisture Indicator

The MC-410 measures the moisture content level in sawn timber. It displays the moisture content level in % H2O. When the external temperature probe is used the Moisture Content value is automatically compensated.

Moisture Content Meter for Wood MC-410

APPLICATIONS & FEATURES

The New MC-410 measures the moisture content level in sawn timber. It displays the moisture content level in % H2O. The instrument has an aver- age adjustment for European wood based on a wood temperature of 20 ºC.

When the external temperature probe is used the Moisture Content value is automatically compensated.

Features:

  • Automatic Temperature Compensation with external temperature probe.
  • High Measuring Range 6-100% MC H2O
  • Selectable temperature unit (ºF/ºC)
  • Large LCD Display
  • Replaceable Electrodes
  • Selectable Temperature Unit Farenheit /Celsius

TECHNICAL

SPECIFICATION

MC-410





INTENDED USER

Woodworkers, cabinet and furniture makers, flooring installers, contractors and quality assurance inspectors. Anyone who needs a quality tool to inspect wood or wood products for accurate moisture content

MATERIALS

Wood ( 150 Species)



MEASURING PRINCIPLE

Resistance type

Detection of resistance changes due to variation of Moisture Content in the material using a DC signal.

MEASURING RANGE -PAPER

Wood: 6- 99.9 % H2O

MEASURING ACCURACY

Approximative. ± 1.5%

MEASURING GROUPS

8 (150 species)

MEASURING DEPTH (FIXED)

8 mm

AUTOMATIC SHUT DOWN

Yes

BATTERY WARNING

Yes

WORKING RANGE (Temp)

0°C/+40°C 14°F/+103°F

WORKING RANGE (Humidity)

0- 85 % Non condensingC

DISPLAY

LCD digital

RESOLUTION

0,1 %

SENSOR

Pin Type Electrodes

BATTERY

2 x AAA

CASE

Soft carrying case

SIZE (L x H x D )

180 x 50 x 31 mm

WEIGHT (INCL. BATTERY)

175 g
