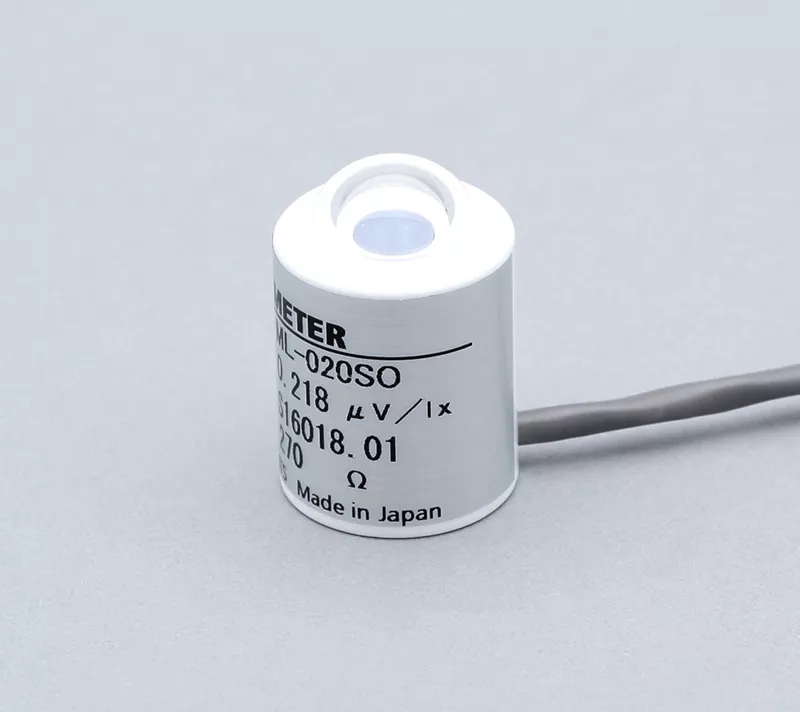

ML-020S-O Lux Sensor
For Outdoor High Light Levels
The ML-020S-O Lux sensor is an all-weather device with a customised detector sensitivity, designed for outdoor high light level applications.
The ML-020S-O illuminance sensor is an all-weather sensor with a customized detector sensitivity for outdoor high-light level applications.
The built-in interference filter, in conjunction with the detector's spectral response, reproduces the CIE photopic curve and gives a calibrated output in lux (lx).
Together with the ML-020S-I Lux Sensor, the ML-020S-O is often deployed in professional applications, controlling or monitoring industrial processes.
- CIE Photopic Response
- Glass dome plus diffusor optics
- Low temperature dependency
- Suitable for outdoor measurements
| Irradiance range | 0 to 150000 Lx |
| Output | 0 to 30000 μV |
| Impedance | 280 Ω |
| Operating temperature range | -10 to 50 °C |
| Temperature response -10°C to 50°C | 0.4 % |
| Cable length | 5m (10/30/50m) |
| Leveling Plate | Optional |
