ISO 9060:2018 Class B
Spectrally Flat

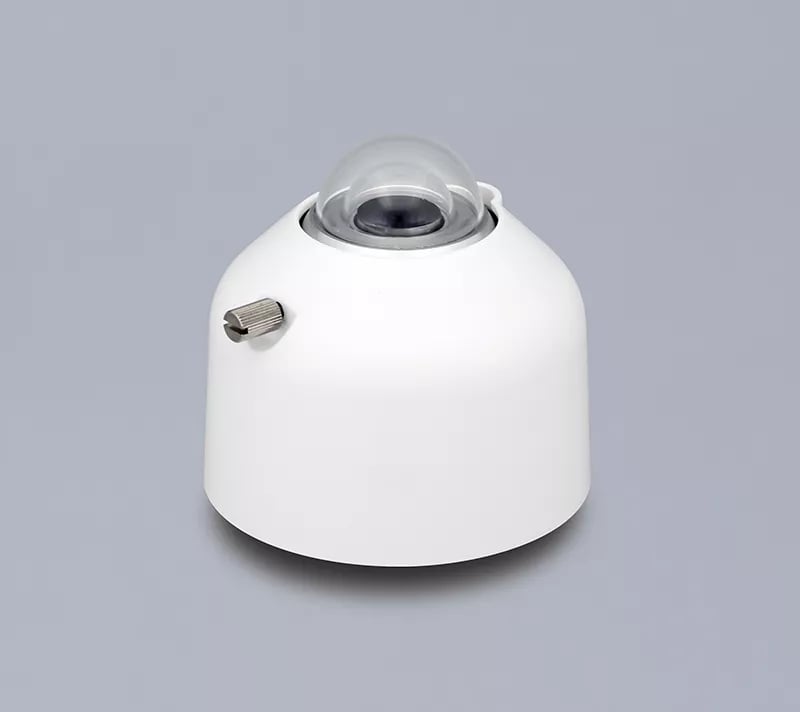

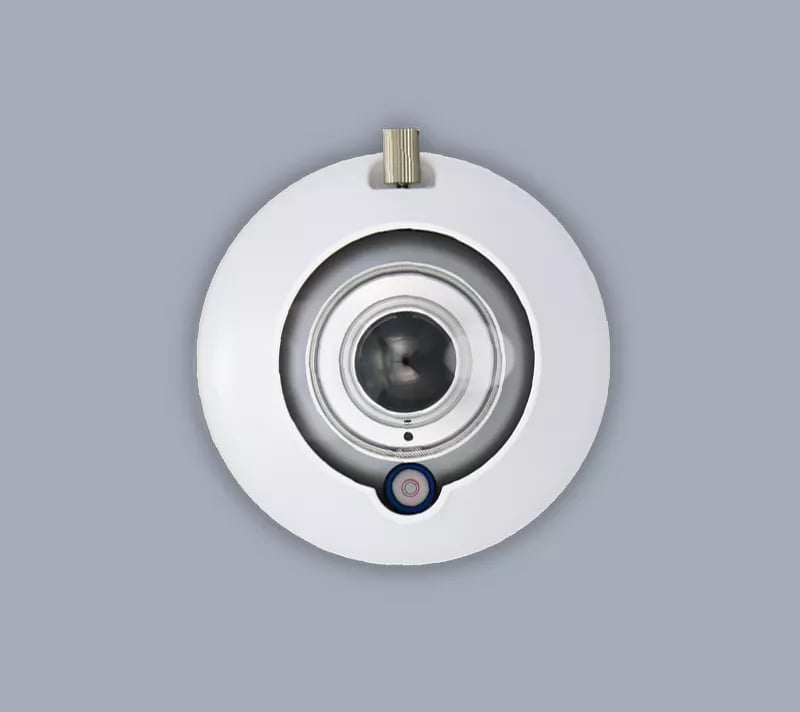

Designed for agricultural research, meteorological applications, and small to medium-scale solar plants, the S-series ISO 9060:2018 Class B MS-60S Pyranometer is part of the most accurate, reliable, and robust family of pyranometers in the world.
Designed for agricultural research, meteorological applications and small to medium scale solar plants, the S-series MS-60S ISO 9060:2018 Class B Pyranometer is part of the most accurate, reliable and robust family of pyranometers in the world.
Built with the same industry-leading features as the Class A MS-80S, the MS-60S comes with EKO’s unique 4-channel smart interface for compatibility with 99% of data loggers, DAQ, and SCADA systems, plus internal diagnostic sensors for remote visibility over internal temperature, humidity, tilt and roll angle; ensuring optimum performance with reduced maintenance costs.
Spectrally flat and with a new double-dome construction for lower offsets and cosine errors, the MS-60S also includes a 5-year warranty and advanced surge protection for a Class B sensor that combines the latest technology with the highest standards of quality, accuracy, and reliability.
- 5 years warranty & recommended 2 year recalibration interval
- Smart 4-channel Analogue & Digital Interface
- Level A EMI/EMC electronics surge filter & protection
- Internal Diagnostics for temperature, tilt, roll, and humidity
| ISO 9060:2018 | Class B |
| Response time 95% | < 18 Sec |
| Zero offset A - Thermal Radiation (200W/m²) | ± 5W/m² |
| Zero offset B - Temperature Change (5K/hr) | ± 2W/m² |
| Zero offset C - Total zero off-set | ± 7W/m² |
| Non-stability (change/year) | < 1.5% |
| Non-linearity (100 to 1000W/m²) | ± 1% |
| Directional Response (at 1000W/m² | 0 to 80°) | ± 18W/m² |
| Spectral Error | ± 0.2% |
| Temperature Response (-20°C to 50°C) | ± 2% |
| Tilt Response (0-90° | 1000W/m²) | ± 1% |
| Additional Signal Processing Error | < 1W/m² |
| Wavelength Range (nm) | 285 to 3000 |
| Irradiance range (W/m²) | 0 to 2000 |
| Signal Output | MODBUS 485 RTU, SDI-12, 4-20mA, configurable 0-10mA / 0-1V* |
| Sensor Diagnostic | Internal Humidity Status, Temp. ± 0.1%, Tilt Angle ± 1° |
| Operating temperature | -40 to 80°C |
| Supply voltage | 5 to 30 VDC |
| Power Consumption | < 0.2 W |
| Ingress Protection | IP 67 |
| Calibration traceability / uncertainty | ISO 17025 / WRR / < 0.7% (k = 1.96) |
| Standard Cable length | 10m (Optional lengths 20m, 30m, 50m) |
