ISO 9060:2018 Class A
Spectrally Flat & Fast Response
The Class A solution for solar power plants with bi-facial PV modules, outdoor material testing, and meteorological applications.

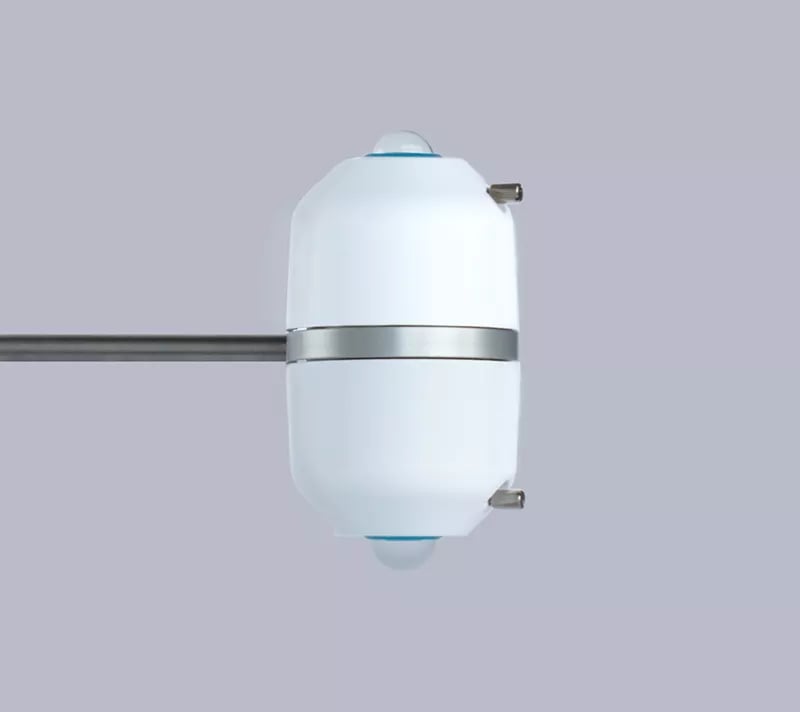

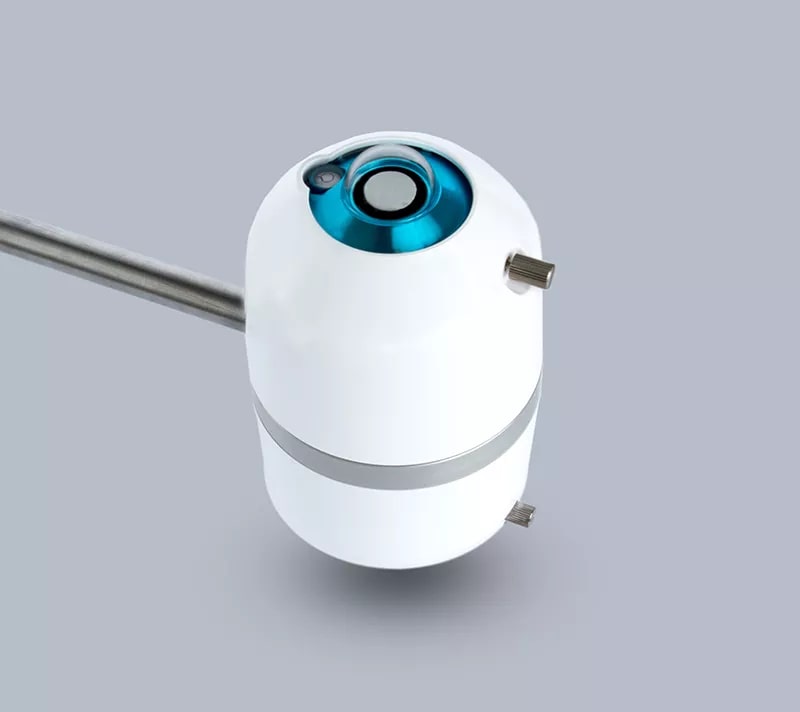

EKO Albedometers are based on a modular design, comprising two MS or S-Series pyranometers combined using the EKO Instruments MS-Albedo Kit, plus glare screen, and optional MV-01 Heater & Ventilator.
Compatible with all S-Series pyranometers, the MS-Albedo Kit allows users to create custom configurations to suit their specific application.
The MS-80S Albedometer utilises two Class A MS-80S ‘fast-response’ and ‘spectrally flat’ Pyranometers with 5-year warranty and competition-busting 5-year recalibration interval, each with our unique 4-channel analog and digital interface, providing compatibility with 99% of data loggers and SCADA systems.
Level A EMI/EMC electronic surge filtering, and a suite of internal temperature, humidity, tilt and roll angle sensors help ensure optimal performance with reduced maintenance, contributing to greater efficiency, higher yield, and more rapid ROI.
Designed for accuracy, built for reliability, and compliant with IEC 61724-1 requirements for Class A PV monitoring systems, the MS-80S Albedometer is the best quality, and best value, albedometer available; delivering industry-leading accuracy in solar albedo and reflected solar radiation measurement.
- <0.5s Super-Fast response for always accurate measurements
- <1W/m² Record Lowest Zero Offset A, and <0.5% Lowest NonStability over 5-Years
- Level A EMI/EMC Electronics Surge Filter & Protection
- 5 Year Warranty & Recommended Recalibration Interval
- Designed for IEC 61724-1 compliant photovoltaic system performance monitoring
- 4-channel Analog & Digital Interface plus Internal Diagnostics
- Optional MV-01 Ventilator & Heater
| ISO 9060:2018 | Class A |
| Response time 95% | <0.5 Sec |
| Zero offset A - Thermal Radiation (200W/m²) | ± 1W/m² |
| Zero offset B - Temperature change (5K/hr) | ± 1W/m² |
| Zero offset C - Total zero off-set | ± 2W/m² |
| Non-stability (change/year) | < 0.5%/5 years |
| Non-linearity (100 to 1000W/m²) | ± 0.2% |
| Directional Response (at 1000W/m² | 0 to 80°) | ± 10W/m² |
| Spectral Error | ± 0.2% |
| Temperature Response (-20°C to 50°C) | ± 0.5% |
| Tilt Response (0-90° | 1000W/m²) | ± 0.2% |
| Additional Signal Processing Error | < 1 W/m² |
| Technical Specifications | |
|---|---|
| Wavelength Range (nm) | 285 to 3000 |
| Irradiance range (W/m²) | 0 to 4000 |
| Signal Output | Modbus 485 RTU / SDI-12 4-20mA / 0-10mA / 0-1V* |
| Sensor Diagnostic | Relative Humidity ± 2% Temp. ± 0.1% / Tilt Angle ± 1° |
| Operating temperature | -40 to 80°C |
| Supply voltage | 5 to 30 VDC |
| Power Consumption | < 0.2 W |
| Ingress Protection | IP 67 |
| Calibration traceability / uncertainty | ISO 17025 / WRR / < 0.7% (k = 1.96) |
| Standard Cable Length | 10m (Optional lengths 20m, 30m, 50m) |
