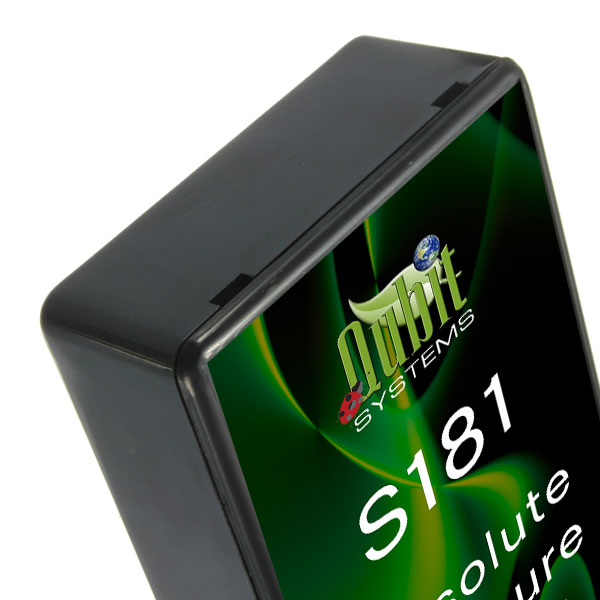

Q-S181 Absolute Pressure Sensor
The S181 Absolute Pressure Sensor is typically used as a stand alone sensor for measurements of atmospheric pressure. To collect and display the data consider our C610 LabQuest Mini data acquisition interface and C901 LoggerPro software.
Applications
- Environmental Monitoring
- Pressure correction of Dissolved Oxygen readings in mg/ml (essential part of Q-Box AQUA Aquatic Respirometry Package)
- part of the Q-Box CO650 Plant CO2 Analysis package and Q-Box SR1LP Soil Respiration Package
| State-of-the-art monolithic silicon pressure sensor | |
| Response Time | 1 ms |
| Resolution | 0.024KPa |
| Accuracy | +/- 0.2KPa |
| Pressure Range | 15 – 115 kPa |
| Voltage Output | 0 – 2 V |
| Temperature Compensated | |
| Analog output may be recorded by the LabQuest Mini C610 Data interface or any other interface with 0-5V Analog input | |
| Warranty | 1 year |
