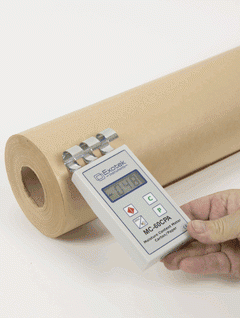

Exotek MC-60CPA


  • Pin-less & non-destructive: Capacitance measurement using a high frequency dielectric field
  • Select from 12 material codes for paper
  • Exotek MC-60CPA moisture detection down to depth of 30 mm
  • Low battery warning & Auto Power Off
  • Impact resistant ABS housing
  • Complete with 9V battery and carrying case


  • Silk-, Filter- paper
  • Semi-chemical pulp, crepe paper
  • Packaging paper, Fluting paper
  • Kraft- or Heavy paper
  • Coated Offset- or Photo paper
  • Hard paper as PCB carrier

Technical Specification

Measuring method:

High frequency dielectric constant measurement

Measuring range card board:

0-175% moisture content (H2O)

Measuring range paper materials:

0-22% moisture content (H2O)

Working conditions, Temp / RH:

-10 to +60° C / 0 - 90 % (non condensing)


± 2%



Field penetration depth:

Approx. 50mm

Max. storage temperature:

-20 to +60°C

Power supply:

9 V alkaline battery


LCD graphical with backlight

Dimensions: L * W * H:

150 x 72 x 25mm

Weight approx.:

150 g. incl. battery

Housing material:


Sensor material:

Stainless steel, electro polished

Carrying bag:

soft synthetic leather


2 years
