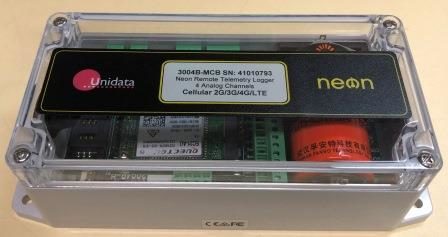

Four and six Channel M Series Neon Remote Loggers are smaller form factor NRL dataloggers, housed in a polycarbonate case.
The 3004M and 3006M Neon Remote Loggers connects to sensors in the field, collects readings from those sensors, logs the sensor data, provides control functions and also transmits the collected data to a central server. The 3004M/3006M Neon Remote Logger is programmed in the field with a Unidata standard program called a scheme. The scheme specifies how often and for how long the datalogger should collect data from the sensors and how often the data should be sent to the server. Control outputs are also set up in the scheme by setting up custom events.
A wide range of sensor types are supported, for example, analog; including 4-20mA sensors, frequency counters, digital inputs as well as Modbus and SDI-12. Control of external equipment (such as triggering a relay when a user-defined event occurs or initiating a shutdown), can be accomplished via Open Drain FET output. Sensors are connected to the logger via pluggable terminal blocks, allowing for easy removal of the logger if servicing is required.
The 3004M/3006M Neon Remote Loggers utilise different wireless networks as their method of sending sensor data from the field to the Neon Server, for example, 3004MC and 3006MC uses cellular 2G, 3G, 4G or LTE phone network while 3004ME and 3006M uses Ethernet network.
INTEGRATED LOGGER SPECIFICATIONS
| Storage memory | 7.5Mbytes Flash (non-volatile), 3.75 Million log data points |
| Memory expansion | SD card, micro size, 32Gbyte maximum capacity, 16 Billion log data points |
| Scan rate | Programmable from 1 second to 5 minutes |
| Log rate | Programmable from 1 second to 24 hours |
| Time clock | Battery Backed Real Time Clock (RTC), Accuracy +/- 10 seconds/month (non- Neon version), locked to server time clock (Neon version) |
| CPU | 16 Bit, 20MHz, Ultra-Low Power |
SPECIFICATIONS 3004M AND 3006M
| Material | Polycarbonate |
| Size | 190mm x 80mm x 55mm (LxWxH), 300g |
| Operating Temperature | -20° to +60°C. Not affected by humidity |
| Antennae | Model dependant, external stub/whip/satellite antenna |
ELECTRICAL SPECIFICATIONS 3004M AND 3006M
| External Power | 9 to 30V DC |
| Current Draw | 50µA Standby |
| RTC Backup Battery | 3.6V Li Coin Cell (5-year life) |
| Internal Power | 3.6 Volt Lithium D Cell |
| Instrument Power | 5V or 12V or 18V regulated, 80mA (user selectable) |
| Instrument Reference Voltage | 5V 10mA Max |
| Analog channels 3004M | 4, Single-ended (max) or 2 Differential (max), |
| Analog channels 3006M | 6, Single-ended (max) or 3 Differential (max), 24-bit resolution, 4 user-selectable gain ranges: 0 to 5V (gain = 1) 0 to 1.25V (gain = 4) 0 to 312.5mV (gain = 16) to 0 to 39.0625mV (gain = 128) |

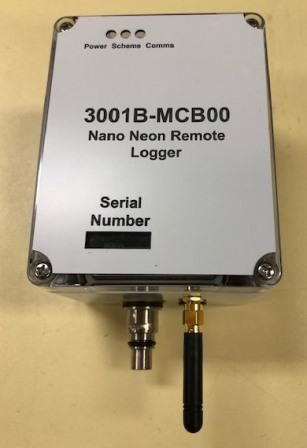

SPECIFICATIONS 3001M
| Material | Polycarbonate |
| Size | 120mm x 80mm x 72mm (LxWxH), 300g |
| Operating Temperature | -20° to +60°C. Not affected by humidity |
| Antennae | Model dependant, external stub/whip/satellite antenna |
ELECTRICAL SPECIFICATIONS 3001M
| External Power | 9 to 30V DC |
| Current Draw | 50µA Standby |
| RTC Backup Battery | 3.6V Li Coin Cell (5-year life) |
| Internal Power | 3.6 Volt Lithium D Cell x 2 |
| Instrument Power | 15V or 18V regulated, 80mA (user selectable) |
| Analog channels | 1 Single-ended (0-2.5V) with 12-bit resolution |
