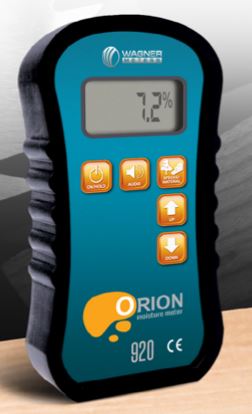

Orion® 920 Moisture Meter

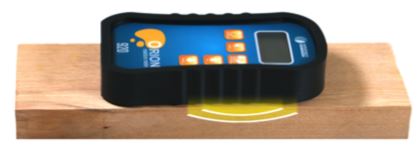

With its electromagnetic field, your Orion® 920 moisture meter covers a relatively large cross-sectional area each time you take a reading, giving you a far better representation than other technologies of the true moisture content of your wood.
The measurement penetration of the Orion® 920 is from the surface down to .25 inch (6mm) and was designed for shallow measurement in wood when you want to be assured to not penetrate through the piece, for example, when measuring the moisture content in solid wood flooring already installed on a subfloor. The Species Setting Booklet includes a few settings for some of these common materials.
ORION® 920 FEATURES
- Digital display resolution of 0.1% (in Standard Measurement mode)
- MC measurement range for wood 4.0% to 32.0%
- Relative scale for testing non-wood building materials
- Programmable settings for a wide range of softwood and hardwood species
- Large moisture measurement sensor area
- Current reading can be frozen on display screen, great for note taking
- Low battery alert indication
- Audible alarm for programmable high moisture content limits
- Programmable audio alert volume
- Can be field-calibrated with the included Orion® On-Demand Calibrator
- Protective rubber boot • Hard shell storage case and a 9-volt battery are included
- Automatic shutoff when not in use
| Scanning Area | 2.0 inches (50mm) x 2.5 inches (63mm) |
| Power | 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries) |
| Auto Power Shut-Down | 60 seconds |
| Measurement Ranges |
MC range for wood: 4.0% to 32.0% |
| Specific Gravity Range for Wood Species | 0.20-1.0 SG |
| Storage Temperature and Humidity | +50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing |
| Operating Temperature Range | +32˚F to +110˚F (+0˚C to +43˚C) |
