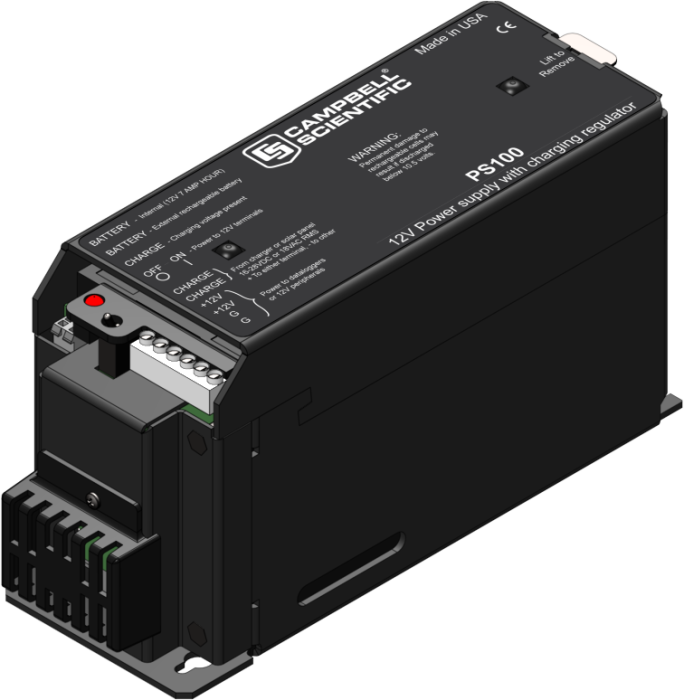

PS100 12Vdc Power Supply with Charging Regulator and BA





  • Powers CR500, CR510, CR10, and CR10X
  • Provides a nominal rating of 7.0 Ahrs
  • Includes charging regulator and sealed rechargeable battery
  • PS100 12 Vdc Power Supply with Charging Regulator and Ba can be float-charged by ac power or solar panel
  • Compatible with the A100 Null Modem Adapter and A105 12 Volt Terminal Adapter; contact one of our Applications Engineers to determine appropriate combinations
input Voltage (CHG Terminals) 15 to 28 Vdc or 18 Vac RMS
Charging Output Voltage Temperature compensated float charge (for 12 V battery)
Charging Current Limit 1.2 A (typical)
Power Out (+12 Terminals) Voltage Unregulated 12 V (from battery)
Nominal Rating 7 Ah
Dimensions 10.5 x 19.3 x 7.1 cm (4.1 x 7.6 x 2.8 in.) including mounts and connectors
Weight 3.1 kg (6.9 lb)
Battery Weight 2.7 kg (5.9 lb)

Quiescent Current

Charge Source Present 3 to 5 mA
No Charge Source Present 0 mA
