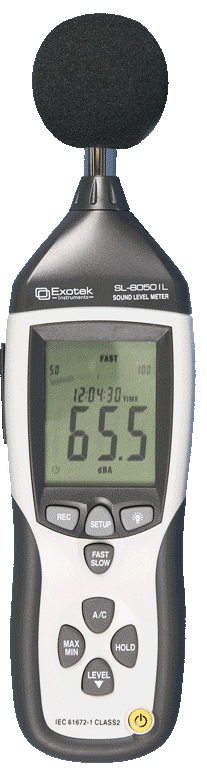

Sound Level Meter SL-8050-IL
SL-8050IL Sound Level Meter with USB interface for recording purposes

This Sound Level Meter is designed to be used in noise project; quality control; illness prevention and cure and all kinds of environmental sounds measurement. It is applied to the sound measurement at factory; school; office; traffic access and household, etc.

  • This unit confirms to the IEC61672-1 CLASS2 for Sound Level Meters.
  • MAX & MIN measurements
  • Over range display
  • Under range display
  • dBA & dBC Weighting
  • FAST & SLOW response
  • Analog AC/DC outputs for connection to frequency analyzer or X-Y shaft recorder

TECHNICAL

SPECIFICATION

SL-8050IL



Standard applied:



IEC61672 -1 CLASS2



Accuracy:



+1.4dB



Frequency range:



31.5HZ ~ 8KHZ



Dynamic range:



50dB



Level ranges:



LO 30dB~80dB



Med



50dB~100dB



Hi



80dB~130dB



Auto



30dB~130dB



Frequency weighting:



dBA/dBC



Time weighting:



FAST ( 125ms ), SLOW ( 1s )



Microphone:



1/2 inch electret condenser microphone



Display: 4



digits LCD display with a resolution of 0.1dB



Display Update:



2 times/sec.



MAX hold:



Hold the Maximum reading



MIN hold:



Hold the Minimum reading



HOLD:



Hold the readings



Alarm function:



"OVER"is when input is more than upper limit of range. "UNDER"is when input is less than upper limit of range.



Analog output:



AC/DC outputs from earphone outlet AC=1 V rms DC=10mV/dB



Data output:



USB data traffic



Auto power off:



Meter automatically shuts down after approx. 15 minutes of inactivity.



Power supply:



One 9V battery, 006P or NEDA1604 or IEC 6F22



Power life:



About 30hours



Operation temperature and humidity:



0 C~40C ,10% RH~90% RH



Dimension



: 278 (L) x 76 (W) x 50(H) mm



Weight



: 350g
