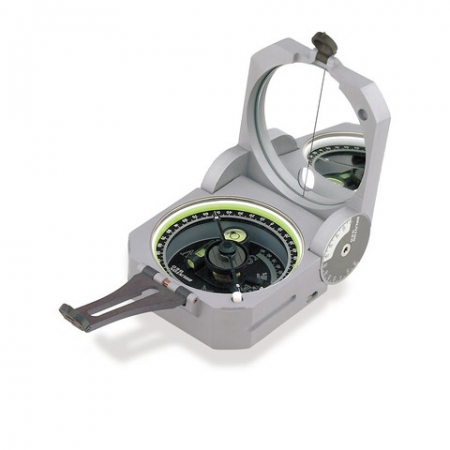

Brunton GEO Pocket Transit
Brunton GEO Pocket Transit
  • Brunton GEO Pocket Transit adjustable needle locking mechanism
  • Hinge clinometer with 1° increments for 1/2° readable dip measurements
  • Two long-level bubbles on the outside of the aluminum housing for no guess leveling from the sides or the bottom
  • Cover hinge assembly designed for increased durability
  • Buck Horn style sights for increased accuracy when sighting azimuth or vertical angles
  • Single NdFeB magnet resists demagnetization better than any other type of magnet
  • Azimuth accuracy +/- 1/2° with 1° graduations
  • Vertical angle accuracy +/- 1/2° with 1° graduations and 10 minute vernier
  • Vertical angle measurements to +/- 90° or 100% grade
  • Percent grade scale with increments of 5%
  • Induction dampened needle for quick, accurate readings
  • Sapphire jewel bearing allows for smooth needle movement
  • Magnetic declination adjustment allows for east or west declination settings to +/- 180°
  • Precision aligned mirror with convenient see-through sighting capability
  • Aluminum billet body assembly makes the GEO nearly indestructible
  • 6061-T6 hard anodized aluminum body for permanent color and scratch resistance
  • Ball & socket tripod mount is centered for increased accuracy of rotation
  • O-rings make the GEO Waterproof for increased reliability
  • Leather case included
  • Overall dimensions: 3.8''x2.8''x1.3''
  • Weight: 12.8 oz
  • Made in the USA
Azimuth accuracy +/- 1/2° with 1° graduations
Vertical angle accuracy +/- 1/2° with 1° graduations and 10 minute vernier
Vertical angle measurements +/- 90° or 100% grade
Percent grade scale 5%
Overall dimensions 3.8''x2.8''x1.3''
Weight 12.8 oz
