Embedment Jointmeters

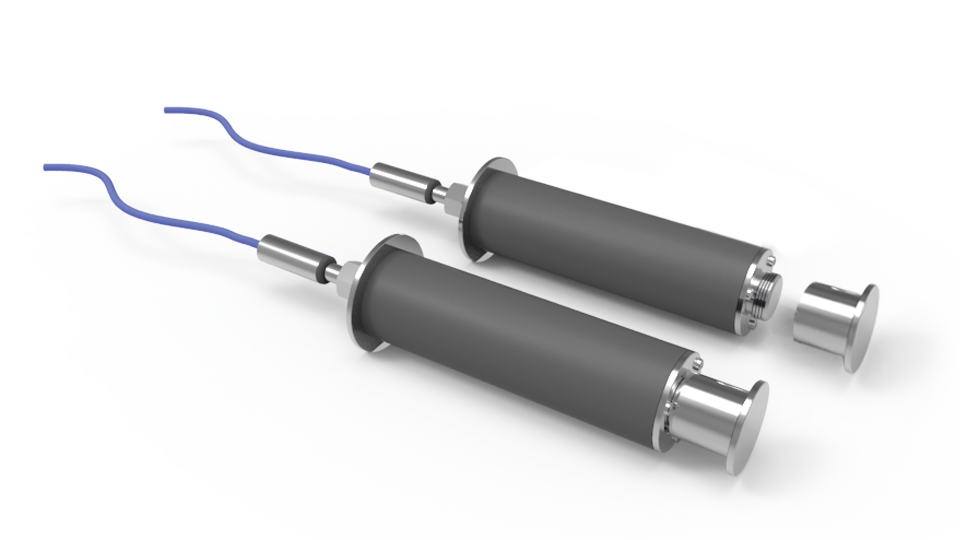

- Sisgeo Embedment Jointmeters to detect the movements between two anchors.
- It is suitable to be merged in concrete grouting, placing it across expansion joints, as usually occur in concrete dam.
- A thermistor allows temperature measurement for temperature compensation, if needed.
- It consists in two anchors, a vibrating wire displacement tranducer (DTE) and an external PVC casing.
- Instrument’s measuring range is pre-set to measure the traction/compression of 50% full scale.
- Any settings different from the standard can be requested to SISGEO in the purchase order.
| PRODUCT CODES | 0D314C025VW | 0D314C050VW | 0D314C100VW | 0D314C150VW |
| Measurement principle | vibrating wire displacement transducer with built-in thermistor | vibrating wire displacement transducer with built-in thermistor | vibrating wire displacement transducer with built-in thermistor | vibrating wire displacement transducer with built-in thermistor |
| Range | 25 mm (1") | 50 mm (2") | 100 mm (4") | 150 mm (6") |
| Accuracy Pol. MPE (1) | < ±0.50% FS | < ±0.30% FS | < ±0.30% FS | < ±0.30% FS |
| Accomodate shear | ±15 mm (±0.6") shear movement at the joint | ±15 mm (±0.6") shear movement at the joint | ±15 mm (±0.6") shear movement at the joint | ±15 mm (±0.6") shear movement at the joint |
| Output signal | frequency (VW), resistance (thermistor) | frequency (VW), resistance (thermistor) | frequency (VW), resistance (thermistor) | frequency (VW), resistance (thermistor) |
| Sensitivity (2) | see calibration report | see calibration report | see calibration report | see calibration report |
| Typical frequency range (3) | 2250 - 3000 Hz | 2250 - 3000 Hz | 2250 - 3000 Hz | 2250 - 3000 Hz |
| Operating temperature | -20°C +80°C | -20°C +80°C | -20°C +80°C | -20°C +80°C |
| Total length | 430 mm | 440 mm | 590 mm | 780 mm |
| Distance between anchors | 300 mm | 300 mm | 400 mm | 470 mm |
| Ancors diameter | removable (unscrewable) anchor 68 mm, body anchor 100 mm | removable (unscrewable) anchor 68 mm, body anchor 100 mm | removable (unscrewable) anchor 68 mm, body anchor 100 mm | removable (unscrewable) anchor 68 mm, body anchor 100 mm |
| Material | galvanized steel / PVC | galvanized steel / PVC | galvanized steel / PVC | galvanized steel / PVC |
| Protection | IP68 up to 1.0 MPa | IP68 up to 1.0 MPa | IP68 up to 1.0 MPa | IP68 up to 1.0 MPa |
| Signal cables | 0WE104X020ZH (armoured) | 0WE104X020ZH (armoured) | 0WE104X020ZH (armoured) | 0WE104X020ZH (armoured) |
| Max. distance to datalogger (4) | 1000 m (for more information see FAQ#77) | 1000 m (for more information see FAQ#77) | 1000 m (for more information see FAQ#77) | 1000 m (for more information see FAQ#77) |
