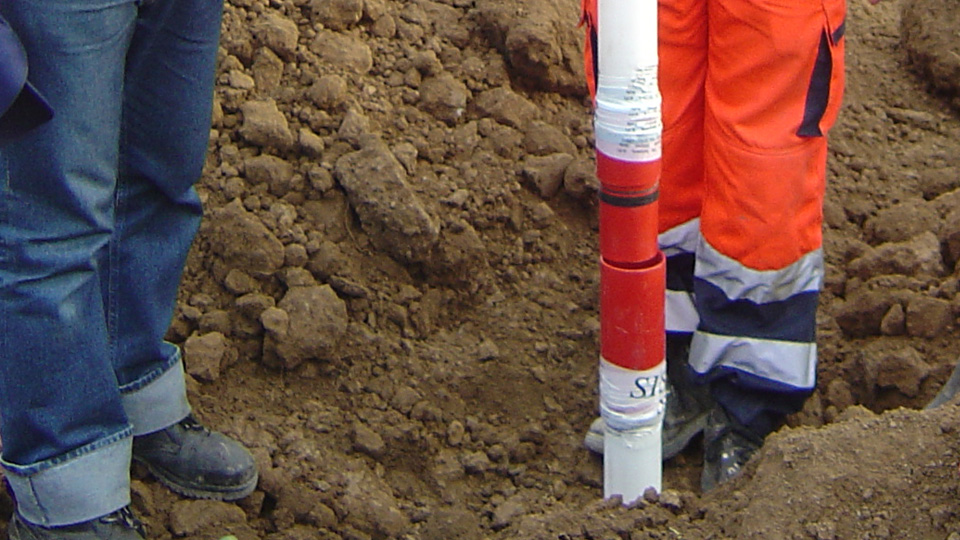

Quick Joint Inclinometer Casing
- Sisgeo Quick Joint Inclinometer Casing an alternative to the traditional inclinometer casings, mainly designed for earth-fill dam and deep boreholes applications.
- Offers consistent joint and deeper tube grooves.
- O-rings prevent ingress of grout or water.
- The fitted-at-factory casings and the alignment keys assure a perfect grooves continuity.
- Fast installation reduce costs and limit drilling rig stand-by.
| Model | 0S151107000 | 0S151MT0700 |
| Description | Standard QJ section | QJ Telescopic section 75 mm gap (3’’) |
| Tube outer diameter | 70 mm (2.75’’) | 70 mm (2.75’’) |
| Tube inner diameter | 59 mm (2.32’’) | 59 mm (2.32’’) |
| Tube groove ID | 63 mm | 63 mm |
| Overall section lenght | 3100 mm | 500 mm |
| Overall diameter | 84 mm | 84 mm |
| Thickness | 5.5 mm | 5.5 mm |
| Material | ABS (Acrylonitrile Butadiene Styrene) | ABS (Acrylonitrile Butadiene Styrene) |
| Colour | white/red | white/red |
| Spiral (1) | < 0.6° / 3 meter | - |
| Collapse test (2) | 15 bar | 15 bar |
| Temperature (max 1 hour) | +80°C (176 °F) | +80°C (176 °F) |
| Max working load (3) | > 500 Kg | > 500 Kg |
