Quick λ Thermal Conductivity Tester

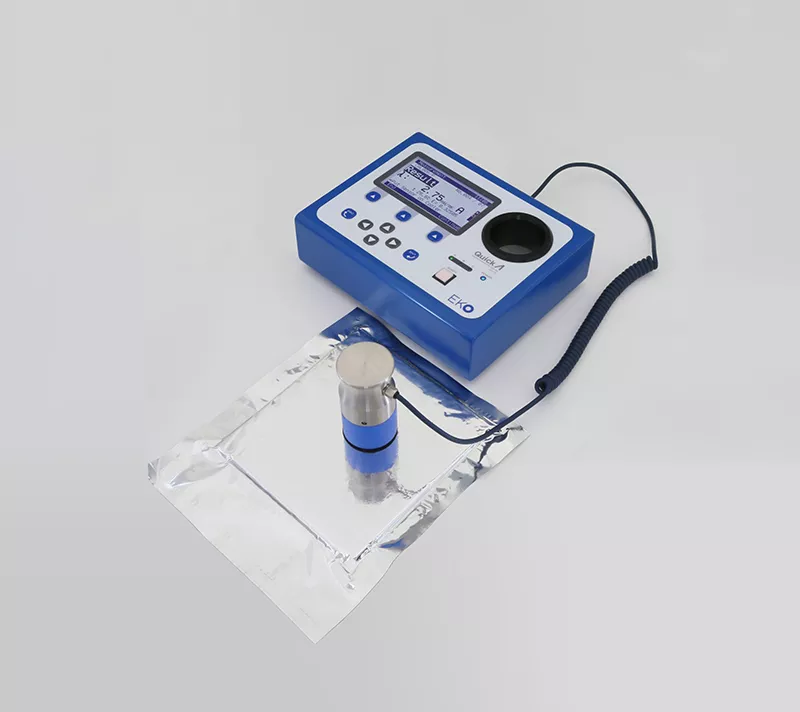

The HC-10 Quick λ Thermal Conductivity Tester is super fast, reliable, and portable, designed to measure the thermal conductivity of a wide range of homogeneous samples and vacuum insulator panels (VIP) in just 60 seconds.
HC-10 Quick λ Thermal Conductivity Tester is superfast, reliable, and portable, designed to measure the thermal conductivity of a wide range of homogeneous samples and vacuum insulator panels (VIP) in just 60 seconds.
It works by measuring heat loss at the surface layer against a standard reference sample with a known thermal conductivity value, or one measured by another thermal conductivity measuring device. By comparing the calibration curve based on the reference sample and the output value from the sensor, the HC-10 achieves unprecedented measurement results and repeatability.
With most thermal conductivity testers taking more than 1 hour to measure a sample, the HC-10 drastically shortens the testing and production time of VIP. It’s a straightforward, but powerful tool in the lab, adding speed and accuracy to research and development.
- Compact, portable design with integrated temperature sensor & heater
- Designed to measure a wide range of homogeneous & VIP materilas
- 60s Super-fast Thermal Conductivity Measurements
- PC software for operation, calibration and data management
| Thermal Conductivity Range (VIP Sample) | 0.001 to 0.015 W/m･K |
| Thermal Conductivity Range (Homogeneous sample) | 0.03 to 5.00 W/m･K |
| Measurement Method | Non-static transient Heat-up method |
| Calibration (VIP Sample) | 3 or 4 samples of the same structure but different thermal conductivity |
| Calibration (Homogeneous sample) | 3 or 4 different standard samples |
| Repeatability | ± 5% |
| Accuracy | Based on standard sample calibration |
| Evaluation | Measurement of a sample can be classified (A,B or C) depending on the measurement result by setting a TC range ( λ1& λ2) |
| Operating Temperature Range | +10 to +40 °C |
| Display | Black & White LCD with back light |
| Parameters | Thermal conductivity, Temperature, Sample class A,B,C |
| Data Storage | 99 (measurement data) and 20 (calibration data) |
| Software | Data view and Data management, Windows OS, English |
| Connection | USB |
| Standard sample (Attached to the Main Unit) | TEMPAX Glass, Acrylic and EPS |
| Power, Power Consumption | AC adapter, AC 100V to 240V 50/60Hz, DC 24V Approx. 30W |
| Size, Weight | W 250 x D 200 x H 85 mm, 4kg (Include Main Unit, Sensor Unit, and PowerSupply) |
