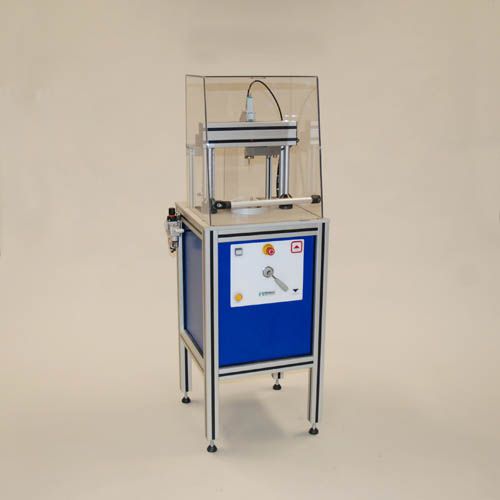

08.67 Compression Test Apparatus
The compression test apparatus (art. no. 08.67) measures the impact of vertical stress on an undisturbed soil sample.
The apparatus is operating computer-controlled using multifunctional software for executing measurement protocols and both numerical and graphical visualised data presentation. The samples are taken in a soil sample ring Ø 103 x 100 mm, height 30 mm, contents 235 cc.
User groups
- Laboratories
- Research institutes
- Educational institutes
- Universities
Benefits Compression test apparatus
- User friendly and easy operation
- Accurate measurement principles
- All in one compression measurements
- Sample diameter 100 mm, height 30 mm
- Software controlled measurement protocols
- Simultaneously operation of up to 8 instruments
- Graphical instrument overview and data zoom functions
- Calibration functions
- Excellent price/quality/performance ratio
- Data file export i.e. Excel
- Upgradable for dynamic operation
- Developed in cooperation with Christian Albrechts University Kiel
Applications
- Physic soil deformation
- Pre compression for shear tests
- Erosion
- Environmental research
- Basic material research
| Range | Resolution | Accuracy | |
| Stress vertical | 0-600 kPa | 0.1 kPa | 2 kPa |
| Response speed | 10 sec. @1% end value (adaptable by PID controller parameters) | ||
| Soil matric potential | -1000...+1000 hPa | 0.1 hPa | 2 hPa |
| Compression | 0-30 mm | 0.001 mm | 0.1mm |
| Sample log rate | 0.1…60 sec | ||
| Soil sample diam | 100 mm | ||
| Pressure-in max | 0.7 Mpa / 7bar | ||
| Load max. | 5 kN | ||
| Stress out max. | 600 kPa | ||
| Mains supply | 100-250 Volts AC | ||
| Mains frequency | 47-63 Hz | ||
| Power consumption | 0.8 W | ||
| Temperature | 15-35 ºC | ||
| Humidity | 20-80% RH (non condensing) | ||
| Dimensions | 45 x 45 x 125 cm | ||
| Software language | English | ||
| P.C. connection | USB |
