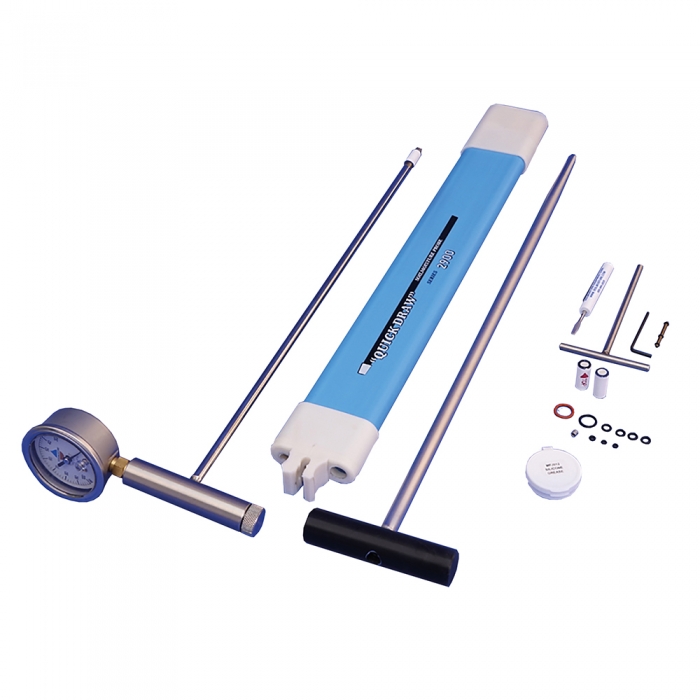

The quick draw tensiometer is a small tensiometer that can easily be moved and, using the auger for pre-drilling, placed into the soil. The small diameter and the super porous ceramic cup and the possibility of pre-setting the tension, allow a measuring period of only a few minutes. After each measurement, the tensiometer can be stored in a carrier cylinder in which it is kept humid allowing immediate use in case of a next measurement.

Benefits Quickdraw

  • Easiest installation with an included gouge
  • Super low dead volume cares for most rapid stabilisation
  • Suction can be preset in 15 cBar steps to further reduce stabilisation time


Maximum measuring depth 30 or 45 cm
Measuring accuracy ± 2.5 hPa
Measuring range 0...850 hPa
Porous material (cups) ceramic
Reading accuracy 2%
Registration type manual
The volume of material needed 10 ml
Applications Irrigation research, Soil moisture measurements
