Weighing in Air/Water Frame
Weighing in Air/Water Frame

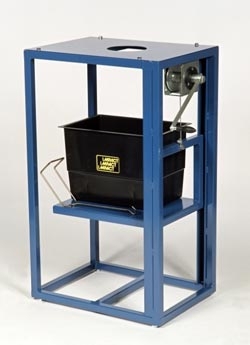

The apparatus consists of a rigid frame, water tank mounted on a movable platform and cradle. The platform is raised and lowered by means of a manually operated rope winch, enabling the user to weight the specimen in air and water without double handling.



  • To Lift: Turn the crank clockwise.
  • To Stop: When releasing the crank the load is safely held in every position.
  • To Lower: Turn the crank anticlockwise.



The manually operated rope winch the following features:

  • Solid construction via closed housing
  • Completely galvanized
  • Encapsulated gear
  • Self-actuating load pressure brake
  • Crank arm continuously adjustable in length

Dimensions: 450mm wide x 600mm deep x 1020mm high
