Soil gas analysis can yield a lot of information concerning the soil environment.
Systeem

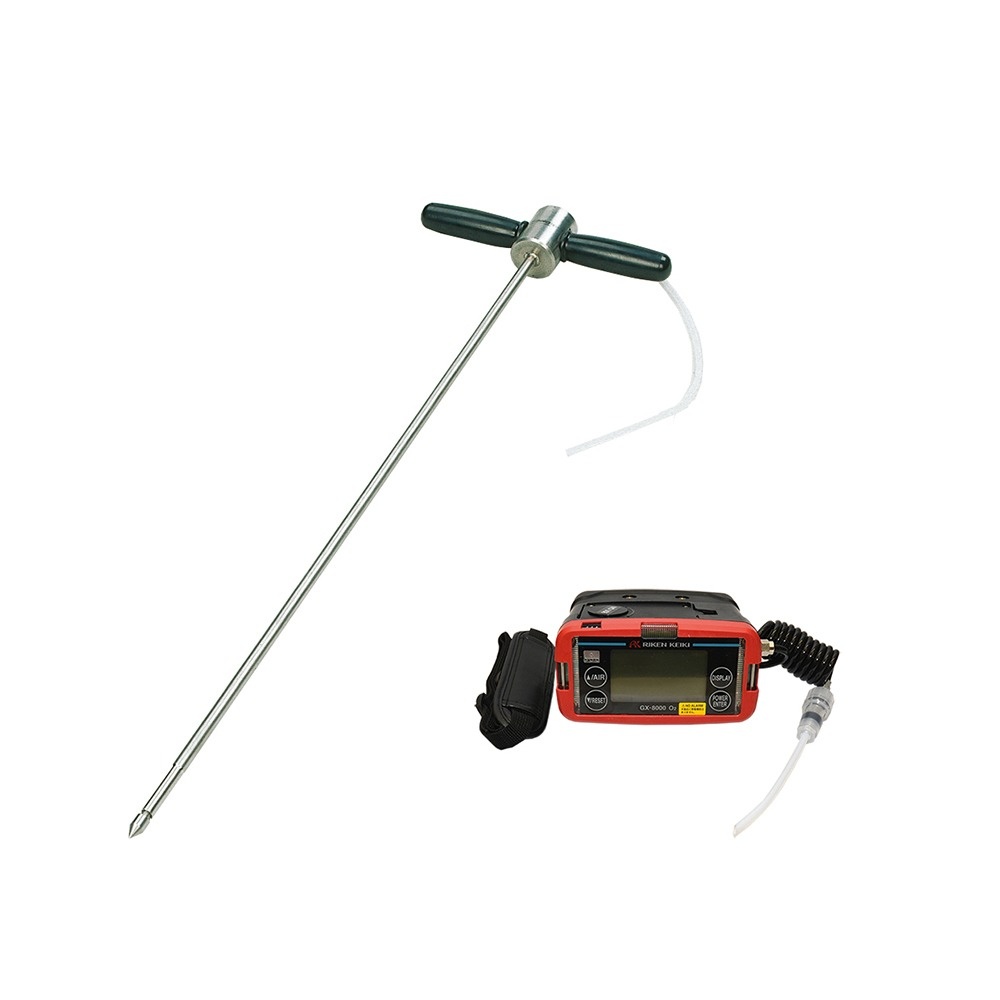

This system consists of a short soil probe and an oxygen content meter. The probe is pushed into the soil manually. Once at the right depth the probe is lifted slightly. In this way, the probe opens itself. Next, the oxygen content meter is connected to the probe and, using a bellows, soil gas is drawn through the meter and the O2 content is measured, and with that, an important growing parameter for trees and plants can be read. The probe has a small dead volume so that a measurement can be executed accurately within minutes. The oxygen content meter operates with an electrochemical cell. This cell has a limited service life (about 1.5 years) but can be calibrated easily with air (21%) and with a gas-free of oxygen (natural gas, nitrogen).
- Eijkelkamp 14.35 Soil Oxygen Content Analysis System consists of a short soil probe and an oxygen content meter.
- The probe is pushed into the soil manually. Once at the right depth the probe is lifted slightly. In this way, the probe opens itself.
- Next, the oxygen content meter is connected to the probe and, using a bellows, soil gas is drawn through the meter and the O2 content is measured, and with that, an important growing parameter for trees and plants can be read.
- The probe has a small dead volume so that a measurement can be executed accurately within minutes.
The oxygen content meter operates with an electrochemical cell. - This cell has a limited service life (about 1.5 years) but can be calibrated easily with air (21%) and with a gas-free of oxygen (natural gas, nitrogen).
Benefits Soil oxygen content analysis system
- Sturdy and very simple to operate soil probe
- Immediately shows living conditions for roots
- Meter allows measurements up till 0% O2
Remarks
- Meter needs renewal of O2 sensor regularly
| Measured parameters | |
| Power supply | battery |
| Registration type | manual |
| Rod or Cable length | 1 m |
| Rod or cable operated | rod |
| Package size | 117 x 27 x 23 cm |
| Weight | 5.1 kg |
