The heavy lifting set is usually used in combination with heavier (hand-operated) drilling equipment for water wells. The tripod and the winch are used, among other things, for lowering and lifting drilling equipment (e.g. the bailer), or for removing the casing tubes.
Accessories

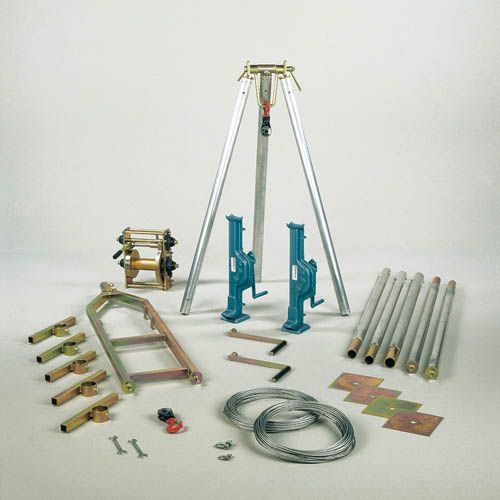

The complete set includes an aluminium tripod (18 kN) with a snatch block, an extra snatch block, a set of step supports which are to be fixed to one of the legs of the tripod, a hand-operated winch (20 kN) for strenuous work with load-brake and free-fall facility, steel cable, and two mechanical jacks.
N.B.: The tripod and the winch are also available as separate items in the program of Eijkelkamp Soil & Water.
- Eijkelkamp 15.09 Heavy Lifting Set For Drilling Equipment used in combination with heavier (hand-operated) drilling equipment for water wells.
The tripod and the winch are used, among other things, for lowering and lifting drilling equipment (e.g. bailer), or for removing the casing tubes. The complete set includes an aluminium tripod (18kN) with a snatch block, an extra snatch block, a set of step supports which are to be fixed to one of the legs of the tripod, a hand-operated winch (20kN) for strenuous work with load-brake and free-fall facility, steel cable, and two mechanical jacks.
Benefits lifting sets
- Complete sets.
- Light-weight aluminium tripods.
- Easy to use.
- Easy to transport.
- Require virtually no maintenance.
- More efficient use of manpower and equipment
Applications of the lifting sets
- As a tool in performing deeper hand drillings or for drilling with heavier drilling equipment.
- For removing casing tubes and lowering/lifting drilling equipment.
- For the installation of water wells and submersible pumps.
- General hoisting activities.
