5532 I-Penetrometer (Digital Cone Penetrometer)
・Digital Cone Penetrometer measures soil compaction in
situ easily.

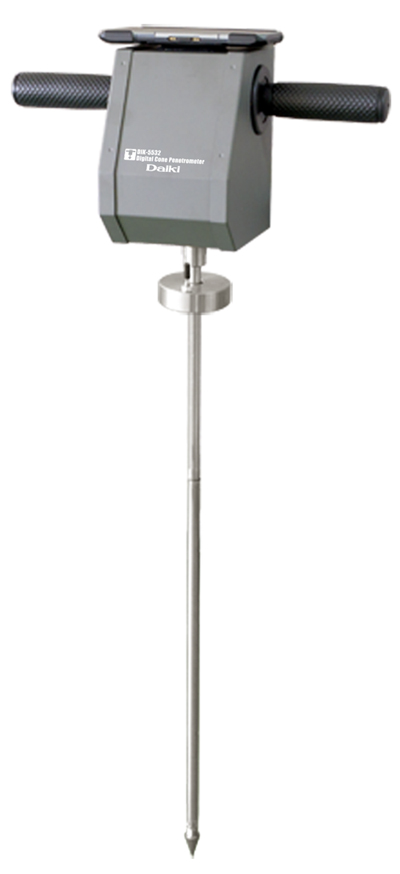

DIK-5532 : Digital Cone Penetrometer
DIK-5532 Digital Cone Penetrometer measures a soil compaction in situ easily. It can be used to measure to depth 0 to 90 cm (Interval each cm), Built-in GPS Display can measure and save data of maximum 1000 locations. This hand held instrument Soil Cone Penetrometer is the world’s best handheld equipment for measurement soil compaction.
- Built-in datalogger and battery, Integrated style

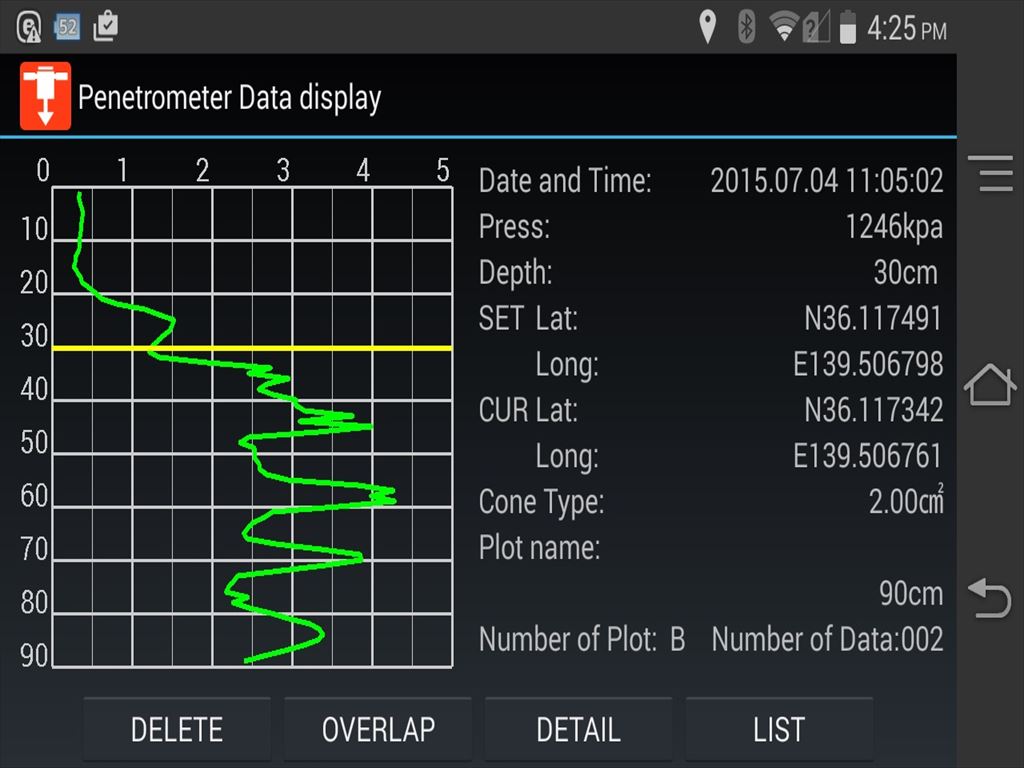

- Real-time measurement Graph with digital display
- Measure depth 0 to 90 cm (Interval each cm)
- Easily obtaining of measurement data and setting of measurement condition by display unit
- Easily checking measurement data by graph
- This product can be measured at a constant speed by displaying an indication of penetration rate
- Bluetooth free from complex wiring
| Main unit | |
| Power source | size C battery 2 pieces |
| Dimension | 345mm x 212mm x 144mm (including handle) (Except spindle, Data display, cone) |
| Weight | Approx. 4kg |
| Measurement range | Cone base area(2cm²) x Measurement Depth(cm) : Measurement range(kPa)
cone 2cm² x 30cm : 179 ~ 4903 |
| Memory capacity | 1,000 measurements |
| Accessories | cone 2cm² 2pcs., spindle 30cm 1pc., spindle 60cm 1pc. |

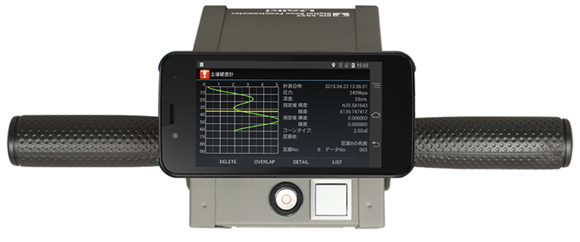

| Data display | |
| Power source | Lithium-ion battery (Rechargeable battery) |
| Dimension | Approx. 144mm x 72mm x 7.8mm |
| Weight | Approx. 141g |
| Communication method | Bluetooth |
| File format | CSV |
| Option | |
| DIK-5532-51 | Mobile printer (Only for DIK-5532) |
| DIK-5532-52 | Replace paper for Mobile printer, (DIK-5532-51) |
