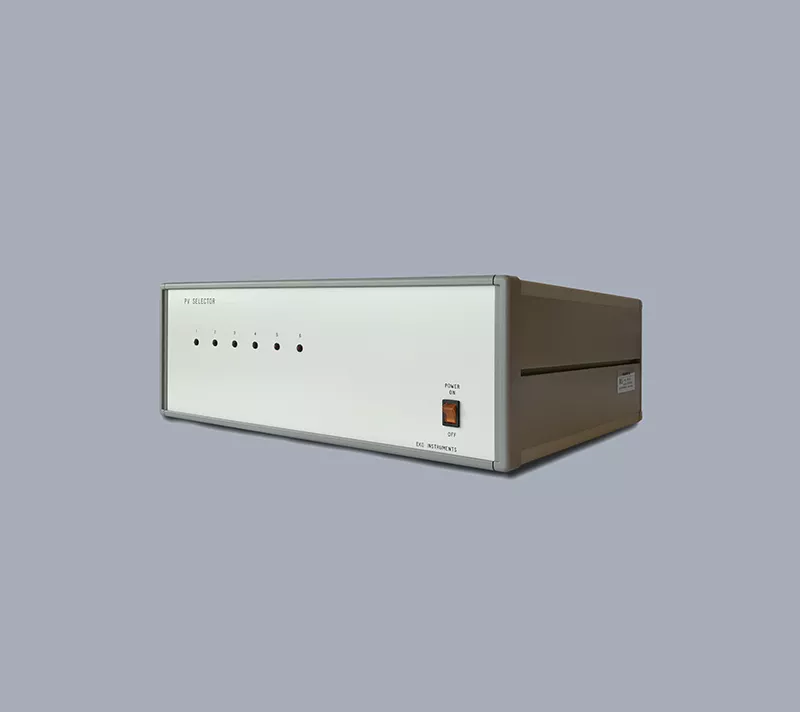

MI-510S PV Module Selector
For PV cells & modules up to 3000W
The MI-510S PV Module Selector, with improved voltage, current and power measurement ranges over the standard MI-510, provides x6 channels for measuring PV modules sequentially.
The MI-510S PV Module Selector, with improved voltage, current and power measurement ranges over the standard MI-510, provides x6 channels for measuring PV modules sequentially and is designed to work with the MP-160 MP-180 I-V Tracers.
Up to x8 units of the MI-510S can be connected to the MP-165 I-V Tracer for testing the long-term stability and I-V characteristics of multiple PV cells and modules.
- Switching capacity 400V / 20A
- x6 input channels
- Compatible with the MP-165 I-V Tracer
| Measurement range Voltage | 0.05 to 400 V |
| Measurement range Current | 0.005 to 20 A |
| Measurement range Power | 0 to 3000 W |
| Operating temperature range | 0 to 40°C |
| Power supply | 100 to 240 VAC, 250W |
| Dimensions mm | 370 (W) x 350 (D) x 133 (H) |
| Weight | 5 kg |
| Input channels | 6 |
| Max. devices | 8 |
