ISO 9060:2018 Class C
Fast Response

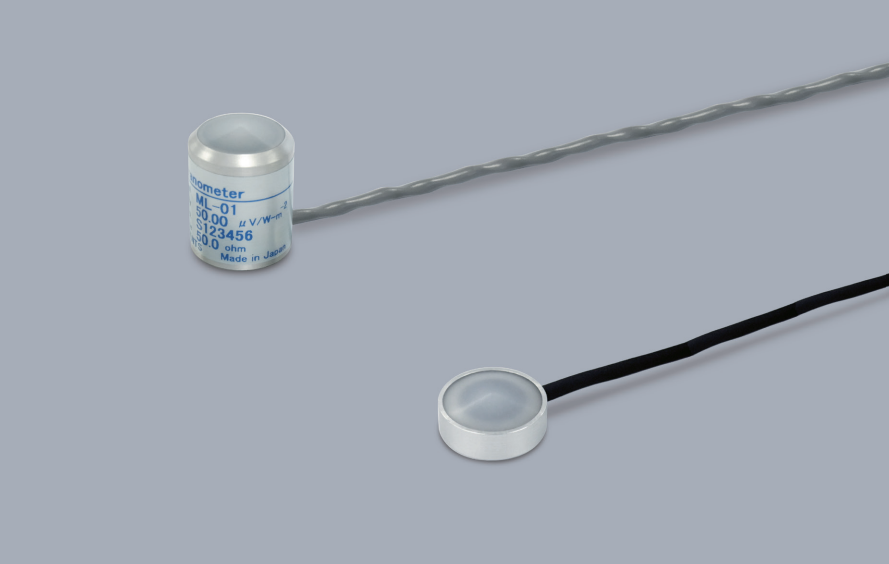

The compact, industrial-grade ML-01 silicon pyranometer is made for high-quality irradiance measurements. It's Class C, Fast Response, light, tough and easy to integrate into any project or application.
The compact, industrial-grade ML-01 silicon pyranometer is made for high-quality irradiance measurements. ISO 9060:2018 Class C, fast response, light but tough, the ML-01 features a mono-silicon detector with a UV-resistant cone-shaped diffuser that helps to minimise soiling and water deposition, delivering an excellent cosine response, even at low solar elevation angles.

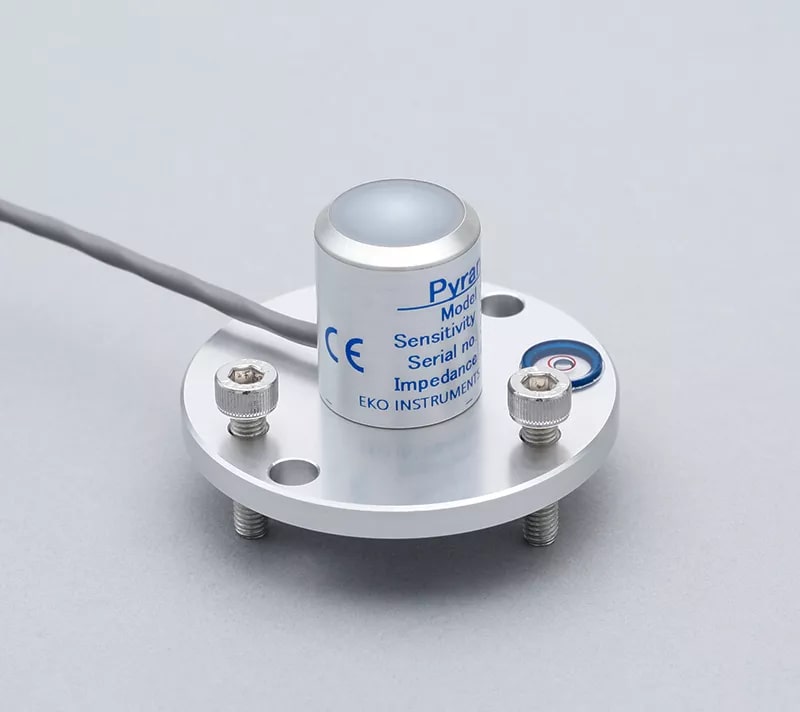

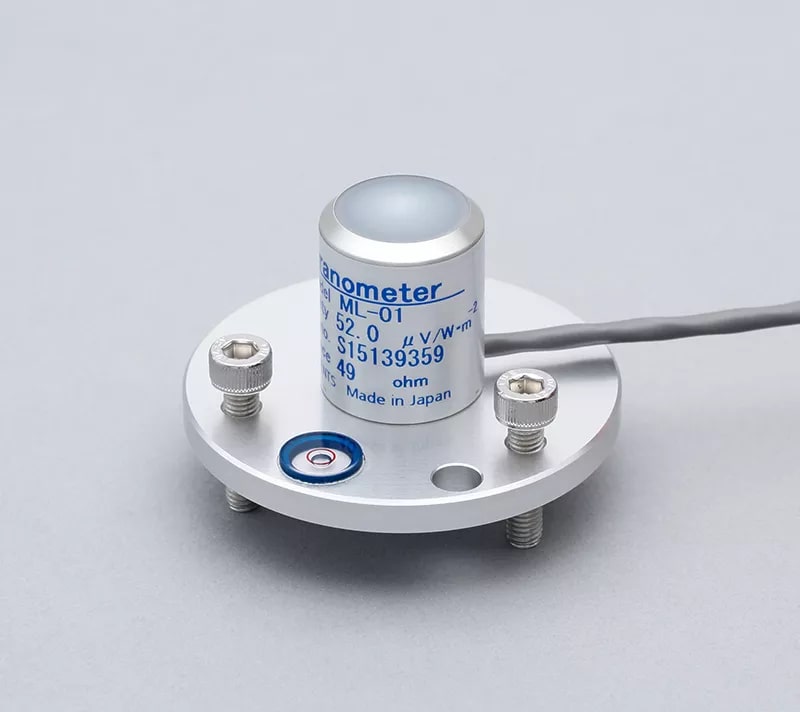

The sensor can be mounted in the horizontal position for global horizontal measurement applications with a standard removable mounting plate with a spirit level and levelling feet.

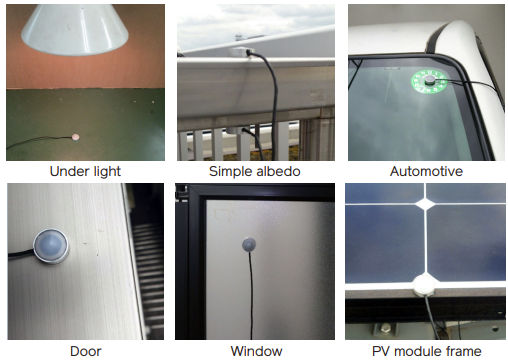

Made in Japan and manufactured to EKO's strict quality standards, the ML-01 comes with an optional mounting plate, a 2-year warranty, 2-year recommended recalibration interval, and unique calibration, compliant with international standards, for a cost-effective alternative to larger thermopile-based sensors, easy to integrate into any project or application; solar, agricultural, automotive and more.
- Small, tough, & easy to integrate in any application
- Excellent cosine response at low solar elevation angles
- Low temperature dependency, suited to hot & cold conditions
- Fast response photodiode detector for always accurate measurements
- Mono-silicon detector with UV resistant diffuser & removable mounting plate
| ISO 9060:2018 | Class C |
| Response time 95% | < 1 msec |
| Zero offset A - Thermal Radiation (200W/m²) | 0 W/m² |
| Zero offset B - Temperature change (5K/hr) | 0 W/m² |
| Zero offset C - Total zero off-set | 0 W/m² |
| Non-stability (change/year) | ± 2 % |
| Non-linearity (100 to 1000W/m²) | < 0.2 % |
| Directional Response (at 1000W/m² | 0 to 80°) | < 10 W/m² |
| Spectral Error | ± 3.07 % |
| Temperature Response (-20°C to 50°C) | < 0.15 % |
| Tilt Response (0-90° | 1000W/m²) | 0 % |
| Sensitivity (Approx.) | 50 µV/W/m² |
| Impedance | 50 Ω |
| Wavelength Range (nm) | 400 to 1100 |
| Irradiance range (W/m²) | 0 to 2000 |
| Signal Output | Analog (mV) |
| Sensor Diagnostic | N/A |
| Operating temperature | -30 to 70°C |
| Supply voltage | N/A |
| Power Consumption | N/A |
| Ingress Protection | Equivalent to IP67 (IEC60529, JIS C0920) |
| Calibration traceability / uncertainty | N/A |
| Standard Cable Length | 5 m |
| Leveling Plate | Optional |
