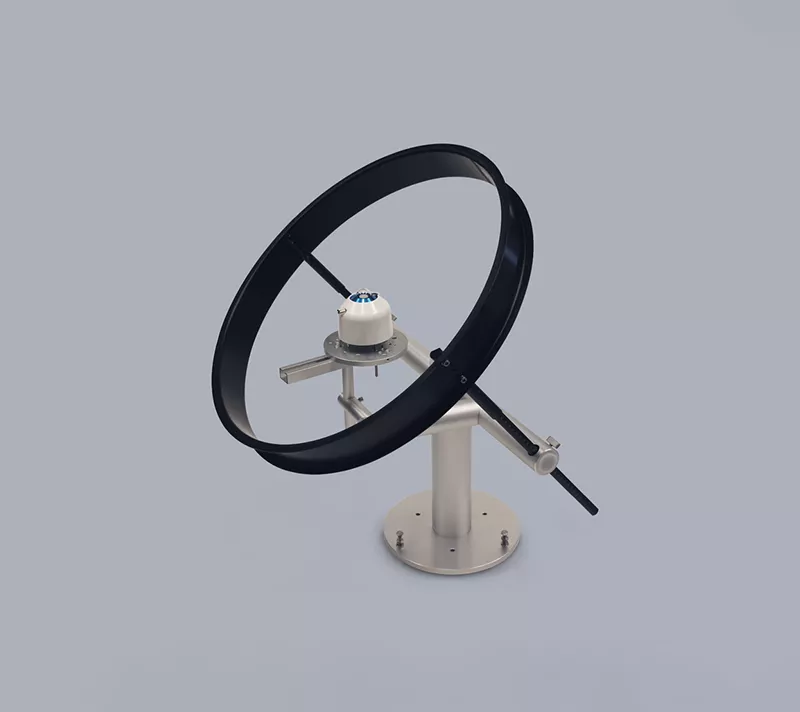

RSR-01 Shading Ring
Simple, Smart & Cost-Efficient
Get all-environment diffuse radiation measurements virtually anywhere on earth with the RSR-01 Radiometer Ring and any EKO MS or S-Series pyranometer.
The RSR-01 Shading Ring, together with any EKO MS or S-Series pyranometer, is designed for on-site diffuse solar radiation measurements.
A cost-effective alternative to automatic diffuse solar radiation measurement with a sun tracker, the RSR-01 ensures that the radiation sensor remains in the shade for several days before it requires re-adjustment.
With dedicated mounting adapters available, the RSR-01 is also compatible with a range of solar sensors.
- Simple, Smart & Cost-Efficient Solution for Diffuse Radiation Measurement
- Rugged All-Weather Design
- Compatible with a range of solar sensors
- Suitable for Tilted Positioning at PV sites
| Compatible sensors | MS & S-Series |
| Operating temperature range | -40 to 80 °C |
| FOV Aperture | 13.6 ° |
| Dimensions | 790 (D) x 400 (H) mm |
| Weight | 10.5 kg |
| Options | |
| Non EKO Products Mounting Flange | Yes |
