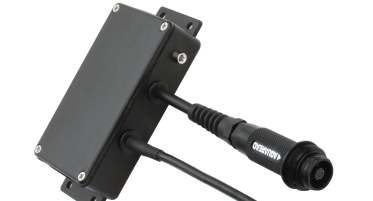

BlackBox – SDI-12 or Modbus RS485 Data Converter
The BlackBox is a data converter that allows any model of Aquaread water quality probe to be interfaced directly to a third party processing, control or logging device. With a choice of industry standard digital interfaces the BlackBox offers a versatile and cost effective data conversion solution.
- Compatible with all Aquaprobes and AquaPlus probes
- Integral barometric pressure sensor for depth and DO correction
- Able to output data from any Aquaread water monitoring sensor; standard, optical or ISE types
- SDI-12 Digital interface
- Modbus (RS485) Digital Interface
- Wide operating voltage range
- Rugged construction with strong fixing flange
- LED status indicator
- IP67 rated
- Suitable for long term unmanned deployment
| Input Voltage | 14V - 28V DC |
| Input Current | 28mA (Includes current drawn by attached Probe) |
| Protection Class | IP67 (Must not be submerged due to barometric pressure sensor) |
| Dimensions | 140mm x 65mm x 30mm (5.5" x 2.6" x 1.2") |
| Weight | 400g (14oz) |
| Connections | Waterproof Probe Socket & 2x1M (3ft) screened power/ data cables** |
| Fixing | Aluminium Flange with four 5mm (3/16") mounting holes |
| Digital Interface | User selectable between SDI-12 and Modbus (RS485) |
| Analogue Interface | Eight programmable voltage outputs and one 4-20mA current loop* |
| Update Rate | All data is refreshed every 2 seconds |
