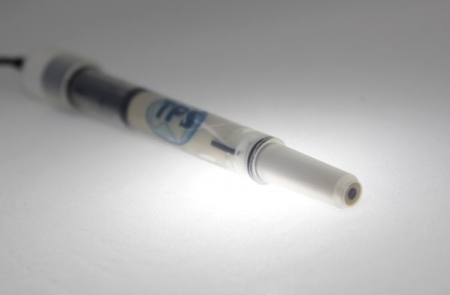

TPS Chloride Ion Selective Electrode
Chloride Ion Selective Electrode

Combination Chloride ISE with Intermediate Junction reference system.

Concentration Range 1.8 to 35,000 mg/L Cl-
Linear Range 18 to 3,500 mg/L Cl-
Slope  -57 mV/decade +/-3 mV at 25 oC
Response Time <30 seconds for 90% of final value from 18 to 35,000 mg/L Cl-
pH Range 2 to 14   (Note: An excess of OH - of 80 times the Br- concentration produces a 10% error)
Main Interferences OH-, NH4+, S2O32-, Br -, I-, CN-, S2-
Temperature Range -0 to 60 oC (32 to 140 oF)
Sensor Material Polycrystalline solid state membrane
Body and Sleeve Polypropylene/PEEK
Reference System Intermediate Junction (IJ) reference system is a double junction design. Ag/AgCl reference.
