Seba Data Logger Dipper-APT Absolute Pressure
Seba Data Logger Dipper-APT Absolute Pressure
Seba Data Logger Dipper-APT Absolute Pressure Seba Data Logger Dipper-APT Absolute Pressure
Data Logger Dipper-APT Absolute Pressure
  • High-performance 32 bit measurement data collector with an absolute pressure sensor for measuring points prone to over-flooding and for swelling pressure measurements at great depths
  • Precise, long-life, stable ceramic-capacitive absolute pressure sensor, for measuring ranges up to max. 20 bar, NTC30 temperature sensor with an 0.3 °C (standard) or 0.1 °C (optional) accuracy

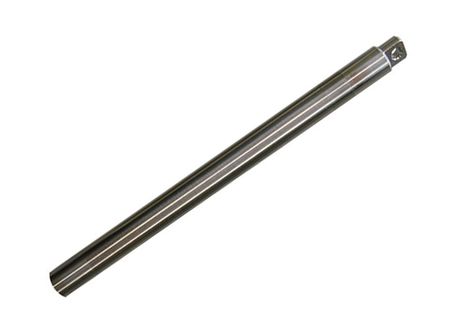

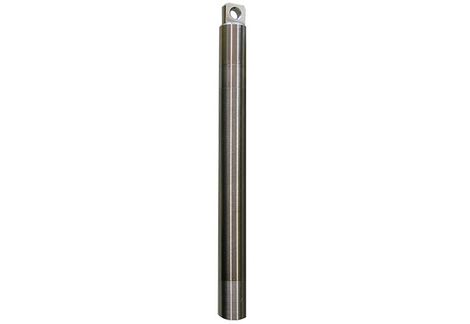

  • Sturdy, sleek Ø 22 mm stainless-steel case
  • XL ring memory for approximately 1.120.000 measurement data
  • Replaceable lithium batteries for about 8-10 years service life
  • Operation with notebook, tablet, PC, smartphone or tablet via Bluetooth (optional)
  • Air pressure compensation with additional Baro-Dipper and Software DEMASdb
  • Modularly expandable with a data transmission module SlimCom

32-bit microprocessor with 16 MB of memory for 1.120.000 readings

Virtually maintenance free:
No battery replacement necessary, no running operational costs

Installation using 1" tube diameter (probe)

Accurate and reliable:

  • Water level: 0.05 % measurement accuracy (= 1 cm at 20 m measurement range)
  • A wide selection of ceramic capacitive absolute pressure transducers from 0.2 bar to 20 bar
  • Temperature: 0.3 °C (standard), 0.1 °C (optional)

Stainless steel housing 1.4404 (standard) or 1.4539 (option) for use in extreme conditions (landfill sites, contaminated, brackish water etc.)

Pressure-tight housing (IP68) suitable for measuring points that are regularly flooded. The barometric pressure compensation is carried out in conjunction with a synchronised clocked Baro-Dipper.

Suspension with kevlar or steel cable (standard), multi-core special measuring cable with the RS485 interface (optional).

Two clever APPs are available for configuration and data read-out of the Dipper-APT. Operating software for beginners SEBAConfig (Windows) a user-friendly interface (Wizard) for various routine tasks. SEBAConfigApp (Android,iOS) combined with SEBA BlueCon 2 enables conveneient communiction via Bluetooth between a smartphone or tablet with a logger.

Using the pluggable data transmission module SlimCom together with the Dipper-APT (special cable version) allows the system to converted into an online station.
